ADS-B UAT TIS-B ANTENNA/TNC Female Connector, 960 MHz-1220 MHz and 1030-1090 MHz and 978 MHz, 50 Ohms, Six Hole Mount, White.

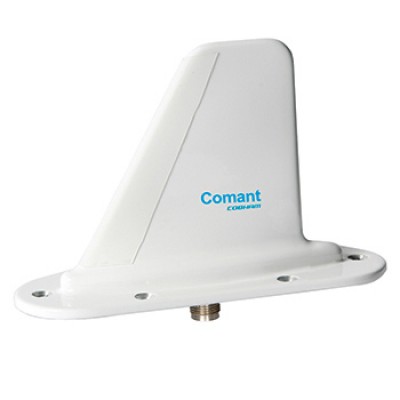

The CI-105-17L broadband antenna is designed for DME or transponder use and covers frequencies from 960 MHz to 1,220 MHz. It has a TNC female connector, a six hole mount and a 50 ohm resistance. This antenna assembly is encased in a glass reinforced polyester molded shell. This antenna can be used on single and twin engine piston aircraft for applications requiring this antenna design.
Ideal for upcoming ADS-B FAA mandate, this is the only antenna of its kind, capable of both IN and OUT processing. Single connector blade antenna that can be used for ADS-B, TIS-B, UAT, DME or ATCRBS Transponder, plus Mode S. Unlike competitive models, the CI 105-17-L utilizes standard 6-hole mounting pattern.
|Frequency|| 960 MHz to 1220 MHz |
1030 MHz to 1090 MHz
1090 ± 1 MHz
|VSWR|| 2.0:1 MAX |
|Return Loss|| 9.54 dB MAX |
-13.98 dB MAX
-13.98 dB MAX
|Impedance RF||50 Ohms|
|Power RF||1 KW Peak|
|Finish||Polyurethane White Paint|
| TSO-C66c, 960-1215 MHz |
TSO-C74d, Class A, 1030-1090 MHz
TSO-C112e, 1030-1090 MHz
TSO-C154c, Class A3, 978 MHz
TSO-C166b, Class A, B, 1090 ± 1 MHz
RTCA/DO-160G, ENV. CAT.:
|A10540 Installation Instructions Supplied with Antenna|
