Dynon Skyview SV-COM-T25 VHF Com Radio - Transceiver Only - 25kHz, TSO

$1063.00/Each
Part# 10-07387
MFR Model# 103708-000

Overview

The SkyView COM Radio will change the way you use an aircraft radio. By integrating deeply with your Dynon SkyView system, the SkyView COM Radio tunes frequencies by airport and station type - rather than by spinning in a number - at the touch of a button. You can also send frequencies over from the SkyView map airport info pages. For when you’re feeling nostalgic (or are following ATC instructions), a dual concentric knob lets you spin in frequencies “the old fashioned way.” SkyView will identify the airport and station type as you tune to help ensure you’re talking to the right radio station.

Don’t Miss a Thing: Dual watch allows you to listen for transmissions on both your active and standby frequencies simultaneously, with the active taking priority at all times. Use dual watch to monitor an alternate frequency in busy airspace or listen to ATIS without missing anything on the active.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Tune frequencies by airport and station type at the touch of a button
  • Send frequencies directly from SkyView
  • GPS-based reverse lookup of airport and station type for manually entered frequencies
  • Vertical and horizontal versions
  • Monitor your standby frequency with dual watch
  • Fully backlit, auto-dimming controls
  • One-touch flip-flop with remote trigger ability
  • Transmit indicator
  • Receive indicator with active/standby differentiation
  • Stuck mic indicator with transmit time-out

Specifications

Frequencies
SV-COM-T25: 118.000 to 136.975 MHz, 25 kHz Spacing

Dimensions
Control Panels: 3.53” (89.7mm) x 1.80” (45.7mm) x 1.27” (32.4mm), available in vertical and horizontal versions

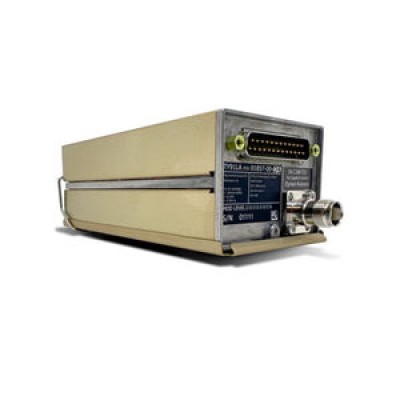

SV-COM-T25 Transceiver Module: 6.3” (160mm)L x 2.5” (66mm)W x 1.9” (48mm)H

Weight
Control Panel: 5.6 oz (159 g)

SV-COM-T25 Transceiver Module
0.77lbs (350 g)

Power Input
10-30 VDC

Transmit Power
6 Watts

Antenna Connection
TNC
