Garmin GSA 28 Servo Install Kit Generic With Mount Bracket

$115.00/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 11-11438
MFR Model# 011-02952-01

Overview

This generic installation kit with mounting bracket, 011-02952-01, for the GSA 28 servo is for push/pull applications and is not specific to any airframe. This kit is supplied with a 3/8” diameter x 8” long solid rod. This rod is intended to be used as the attachment link between the GSA 28 and the flight control system. It is the installer’s responsibility to cut this rod to the correct length and tap the ends for the male rod end bearings.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

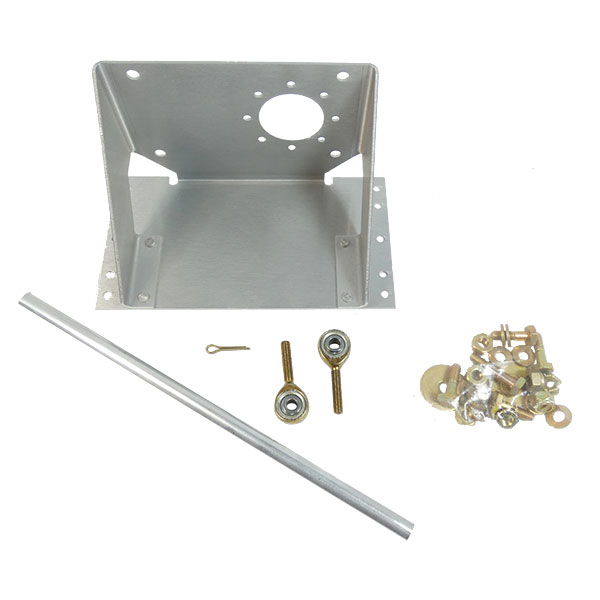

In The Box

ITEM GARMIN P/N QTY DESCRIPTION
1 212-00080-03 2 AN970-3 WASHER
2 382-00019-02 2 MALE ROD END BEARING
3 210-00116-03 2 AN315-3R JAM JUT
4 117-00542-07 1 PUSH ROD, 8.0" UNTAPPED
5 212-00035-10 9 AN960-10 WASHER
6 211-00090-01 4 AN3-5A BOLT
7 212-00043-10 1 AN960-10L (THIN) WASHER
8 210-00117-03 5 AN365-1032A LOCK NUT
9 115-01854-00 1 GSA28 MOUNTING BRAKCET, GENERIC
10 211-00090-05 1 AN3-7A BOLT
11 231-00034-04 1 COTTER PIN, MS24665-208

Reference Chart

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Terry J Verified Purchase

GARMIN GSA 28 SERVO INSTALL KIT GENERIC WITH MOUNT BRACKET

November 3, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is included with the Garmin GSA 28 servo install kit?

We have added an "In The Box" section on the website that shows the contents of this install kit.

Q: What is the thread size to tap into the connecting rod for the rod ends?

10-32 (3/16)

Q: Will a Dynon SV42 fit in this bracket?

No. Part # 11-11438 is for a Garmin GSA 28. Part # 10-03563 and 10-03564 are a kit with SV42 servo and bracket kit.
