Part# 11-15317
MFR Model# 010-01561-40


Note: For use with the Garmin Pilot App and other Garmin Portable systems only.

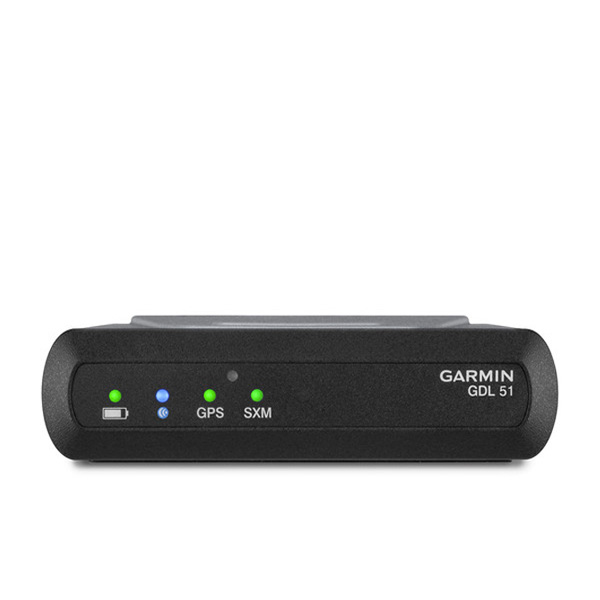

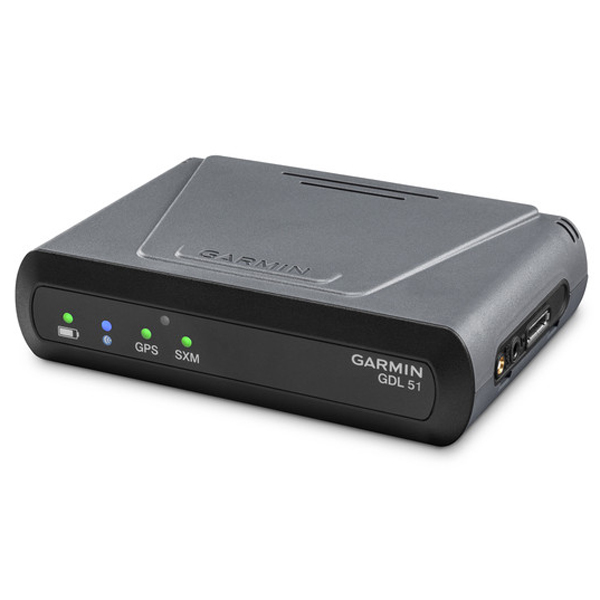

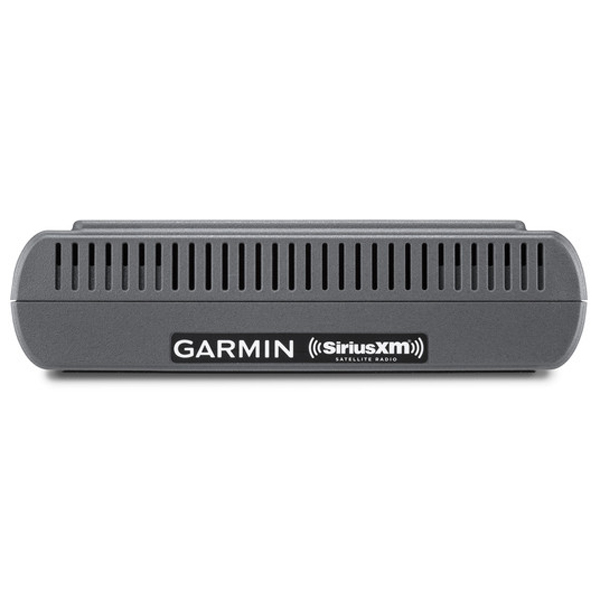

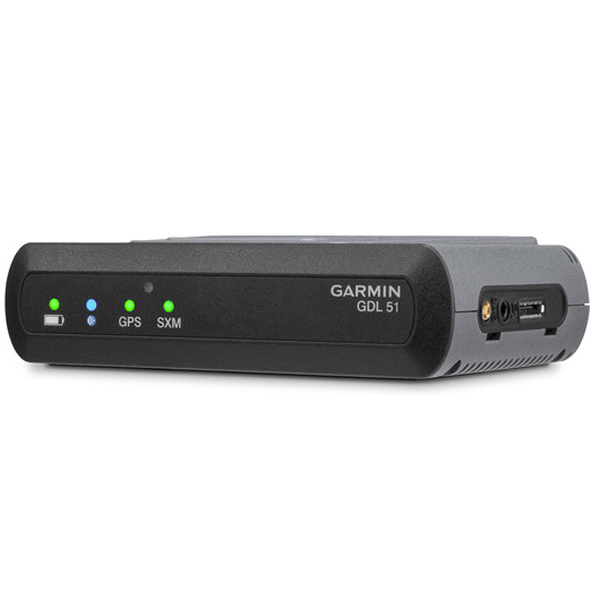

Portable SiriusXM® Weather and Music Receiver

Get the Weather You Need and Entertainment You Want
  • Receive SiriusXM® satellite aviation weather and digital audio entertainment¹

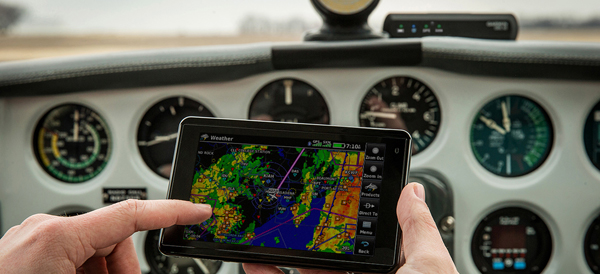

  • Wireless connectivity for display on select mobile device apps and Garmin portables
  • Compact device with rechargeable battery; designed to sit on aircraft glareshield
  • Access high-resolution NEXRAD imagery and METARs weather information
  • Provides GPS position data, backup attitude² and more

Providing an easy-to-use and completely portable aviation satellite link, the compact GDL 51 SiriusXM receiver lets you access continuous, detailed weather information — plus more than 150 channels of digital-quality music, news, sports and other entertainment programming. Better still, you can use our Connext® wireless connectivity to stream SiriusXM services onto multiple Garmin aviation portables (including aera® 660, aera 796 or aera 795 series) as well as iPad® tablets and other mobile devices with the Garmin Pilot™ app. So you get more access — on more devices — without spending more money.

Satellite-delivered Weather

Continuous SiriusXM satellite updates — accessible by ground and air — can help you make better, more timely flight decisions. The SiriusXM network’s powerful satellites deliver seamless coverage at any altitude across the continental U.S. and its coastal regions as well as southern Canada. (See coverage map.) Choose from available SiriusXM Aviation weather packages that provide METAR data and animated NEXRAD imagery as well as current reports on precipitation, lightning, winds aloft, echo tops, turbulence, freezing levels, TFRs and more¹. And to help you maintain the most current weather picture, your GDL 51 receiver can queue the weather from SiriusXM while your display device is sleeping or turned off so it automatically updates when you turn the screen back on.

Great Sound Made Easy

By simply connecting a compatible Bluetooth® headset or audio panel to GDL 51, you can wirelessly listen to your choice of high-quality audio entertainment channels provided by SiriusXM¹. Volume adjustments and station selection may be accessed through your compatible Garmin aviation portable or mobile device app. If you prefer, a 3.5 mm stereo audio jack positioned on the side of your GDL 51 makes it easy to provide a hardwired audio out connection to an auxiliary device or audio panel in your aircraft.

Built-in GPS and Attitude Sensors for SVX™ Display

In addition to its satellite weather and audio entertainment capabilities, your GDL 51 receiver’s feature set includes a built-in WAAS GPS receiver. This enables GDL 51 to deliver highly accurate aircraft position, speed and altitude information to your compatible mobile device app. Also, built-in attitude sensors enable select Garmin aviation portables and apps with our SVX synthetic vision technology to serve as a backup attitude reference² during your flights. With virtual terrain, obstacles, runways, horizon cues, HSI, GPS speed, altitude and more, this brings a whole new perspective to your portable navigation.

Battery Power for Hours

GDL 51 is a true go-anywhere device. A built-in rechargeable lithium-ion battery allows GDL 51 to wirelessly receive SiriusXM data for up to 7 hours on a single charge. And for operation connected to power, you can plug in via the included vehicle power cable or microUSB port positioned on the side of the receiver.

Get Sirius

For pilots who want advanced weather capabilities plus an array of audio entertainment options, the GDL 51 SiriusXM receiver does both — anywhere you want to fly, drive, pedal or walk within the SiriusXM coverage area. And by going with Garmin, your receiver will be backed by a comprehensive 1-year warranty — and by the industry’s No. 1-ranked product support team.

¹Subscription required and sold separately. See for details. Not all SiriusXM weather products may be available across all devices. Check your Pilot’s Guide for specifics about which products are available on your device
²The attitude information provided by GDL 51 is not intended to be a source of attitude information for flight in instrument meteorological conditions

Apple and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.


  • Compatible with G3X Touch™, aera® 660 and aera 795/796 aviation portables and the Garmin Pilot™ app on Apple® or Android™ mobile devices.
  • Capable of simultaneously supporting up to 2 wireless display devices, 1 wireless audio device, 2 wired display devices and 1 wired audio device.
  • Rechargeable lithium-ion battery allows the GDL 51 to receive SiriusXM data for up to 5 hours on a single charge


  • Unit dimensions, WxHxD: 4.9" x 1.3" x 3.4" (12.44 x 3.30 x 8.64 cm)
  • Weight: 0.75 lbs (0.34 kg)
  • Anti-slip mat (on bottom of unit only)
  • Operating temperature: -20°C to +60°C (-4°F to 140°F)
  • Operating altitude: To 55,000 ft
  • Nominal operating velocity range: 0 – 800 kts (411 m/s)
  • Power input: 10 to 32 VDC, 3.5 W max.
  • Battery type: Lithium-ion rechargeable (built-in)
  • Charge temperature: Unit may not charge at extreme temperatures below 0° C (32° F) or above 32° C (90° F)
  • Typical battery operating time: 7 hours

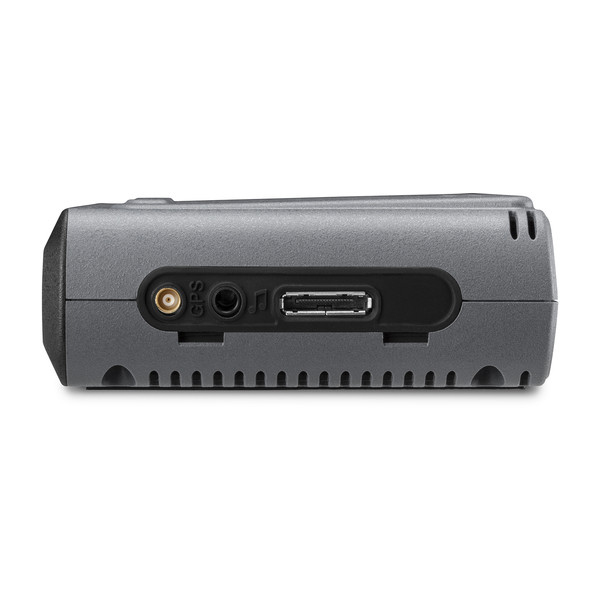

  • 18-pin power and data connector

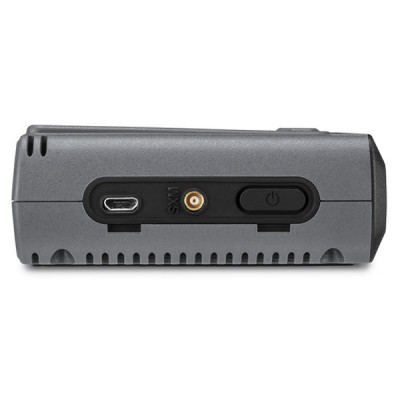

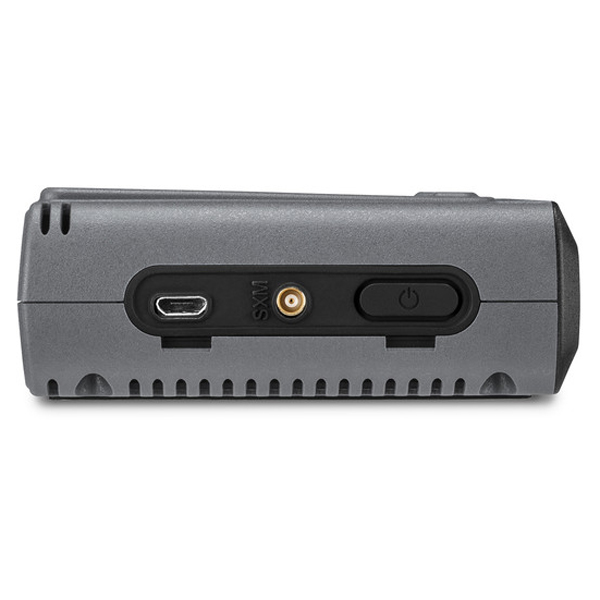

  • microUSB
  • SiriusXM® MCX antenna port
  • GPS MCX antenna port
  • 3.5 mm audio jack (audio out only)
  • Wireless Connext™ (Bluetooth®)


The GDL 51 series datalink receivers are now compatible with the ForeFlight app, allowing customers access to a full featured suite of weather products. SiriusXM Aviation weather can now be displayed using software version 10.2 or later, available from ForeFlight. ForeFlight support for GDL 52/51 does not include SiriusXM audio entertainment control at this time.

Pilots using ForeFlight Mobile with the Garmin GDL51 can access two tiers of SiriusXM Aviation weather: 1) Pilot for ForeFlight or 2) Pilot Express. Click here to learn more.

In The Box

  • GDL 51 portable receiver
  • Suction cup for cable placement
  • Mounting bracket
  • Trial subscription to Garmin Pilot™ app
  • Vehicle power cable
  • Documentation
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With


XM weather works good on the ground before takeoff. I never listen to music in an aircraft. I havent tried the attitude function yet but I expect it will work just fine.

Ray L
November 30, 2020

Easy set up and works well with Foreflight. Love it.

July 14, 2020

Better than any other portable SiriusXM weather option for the cockpit: light, ridiculously-long battery life, easy to use, etc. Its surprisingly heavy, probably because its mostly battery the weight, combined with its rubber bottom, means that it doesnt slide around on the dash, even in turbulence. The one caveat is that the bluetooth connectivity is still a little flaky, at least with Android devices. It drops in and out a lot, disconnects devices entirely sometimes, and forgets its auto-reconnect options. By comparison, the bluetooth link between my panel-mounted Garmin GTX 345 transponder and the same Android devices is rock solid (so the problem is probably not the Android devices). Hoping this gets fixed in a future system-software release.

David M
September 22, 2017

Gdl51 works great except one problem. One of the main readons i purchased it was for the surface anaylis. The fronts and isobars . If you have,Garmin Pilot , it is not set up for the analyst chart. I would have kept my gdl39 if i had known and saved the money

Paul K
November 4, 2017


Q: Is there an additional antenna required for ADSB weather and traffic on the Garmin GDL 51 / 51R?

The Garmin GDL 51 / 51R is a Sirius XM receiver only. It does not also receive ADS-B information. For that you will need to order the Garmin GDL 52 / 52R which will receive both Sirius XM and ADS-B.

Q: Does the GDL 51 portable unit receive the XM and GPS signals as is (say sitting on to of glare sheiks) or does one need a separate plug in antennas to capture the signals? If so which specific XM and GPS Antennas work?

The GDL 51 portable unit includes internal GPS and SiriusXM antennas. You do have the option of using external antennas if so desired.

Q: Does the GDL 51 / 51R receive XM Weather with other APPS? I am specifically looking at FltPlan Go and WSIs Pilot Brief?

Garmin states that this is for use with the Garmin Pilot App, other Garmin Portable systems, and ForeFlight only.
