RAM Mount Base For Beechcraft / Bonanza Yoke RAM-B-108B-Strap40U

$19.99/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 11-09763
MFR Model# RAM-B-108B-STRAP40U

Overview

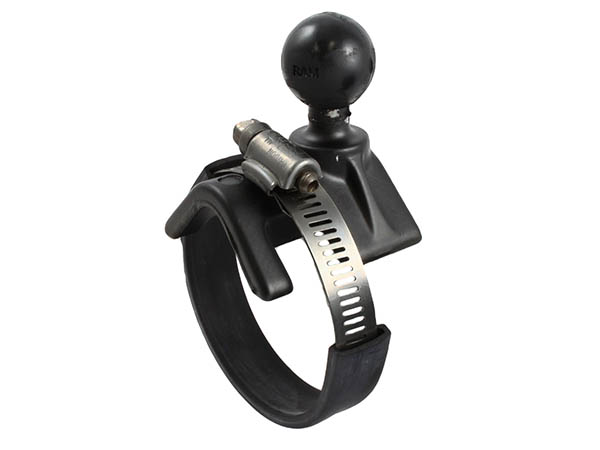

The RAM-B-108B-STRAP40U accommodates rails from 2" to a maximum of 3" in diameter. To mount the RAM-B-108B-STRAP40U base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108B-STRAP40U is an alternative mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Clamp Dimensions: 2" to 3"
  • Included in Kit: (1) QTY metal strap, (1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail
  • Material:Powder Coated Marine Grade Aluminum
  • Ball Size:B Size 1" Rubber Ball
  • Note:The "U" in the part number reflects product packaged in poly bag.
  • Weight:0.28 lbs.

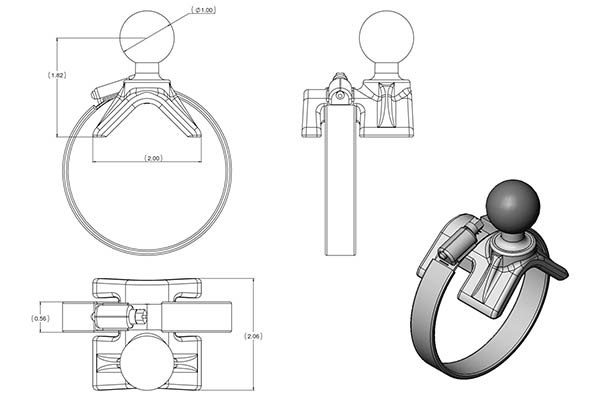

Reference Chart

Reviews

Works great for mounting a 696, iPad mini to the tubing forward of the door on an AT-802.

Matt C Verified Purchase

RAM V Base Ball Bonanza Strap

June 1, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the largest diameter yoke this will work on?

Clamp Dimensions: 2" to 3" max
