RAM Mount System Yoke To Diamond Adapter

$53.49/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 11-03444
MFR Model# RAM-B-121-238

Overview

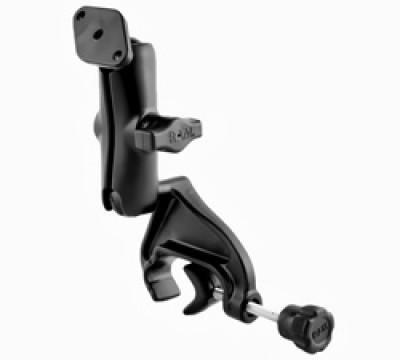

The RAM-B-121-238 consists of a double socket arm, universal diamond base and yoke clamp base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. The clamp base will accommodate rails in diameter from 0.625 inch to 1.25 inch. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Material: Powder Coated Marine Grade Aluminum
  • Ball Size: 1" Rubber Ball "B" Size

In The Box

  • Includes adapter, arm and base - everything you need!
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this mount secure a RAM-HOL-TAB12U tablet holder for the iPad Mini?

The RAM-HOL-TAB12U cradle uses a round adapter, not the diamond adapter this system has on the end. In order to achieve the same set up with the round adapter, order our part # 11-05063.

Q: Is the Arm included with this system the Double Socket Med. Arm, #11-01255?

Yes, it is.
