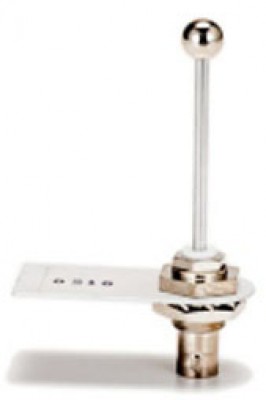

Trig Avionics TA12 Transponder Antenna

$102.00/Each
Quantity
Add to Wishlist
Part# 11-20273
MFR Model# 02450-00

Overview

The TA12 is a fully certified and highly compact ‘rod and ball’ style transponder antenna. The TA12 is an ideal match for a Trig transponder, particularly in applications where a small and discreet transponder antenna is needed in light aviation, GA and high performance types.

The TA12 is simple to install, requiring a small hole in the aircraft surface. An installation guide, install kit and FAA 8130 certification/approval is included. Make your Trig transponder installation complete by adding a TA12.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • High quality product – proven with Trig transponders
  • Suitable for most GA types, including high performance aircraft (up to 350 mph / 50,000 feet)
  • Certified to FAA TSO C74c
  • Discreet and very lightweight
  • Complete with installation kit

Specifications

Product Model Type Frequency Impedance VSWR Polarization Pattern Connector RF power Weight
TA12 Transponder Antenna – ‘rod and ball’ type 1030 – 1090 MHz 50 Ohms nominal 1.3:1 maximum Vertical Omni-Directional BNC female 1.0kW peak @ 1% duty cycle 28g / 1oz
