RAMI AV-22 Transponder Antenna

$94.75/Each
Quantity
Add to Wishlist
Part# AV-22
MFR Model# AV-22

Overview

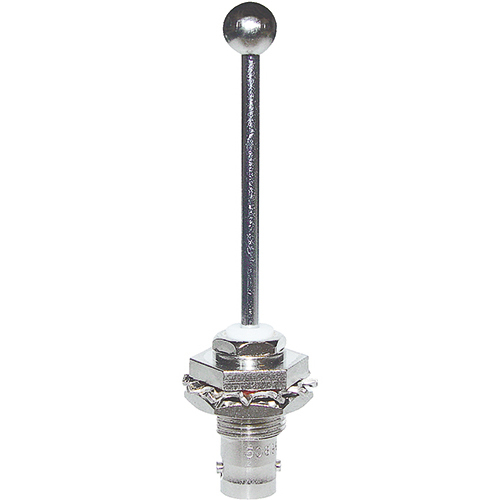

The AV-22 is a rod style transponder antenna utilizing its BNC connector for mounting to the airframe. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet. It has a drag force of 0.41 lbs @ 250 mph. It is a direct replacement for the CI 101, and can also be used as an ABS-B antenna.

Frequency: 1030-1090

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Application: Transponder
  • Frequency: 1030-1090 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.3:1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: “BNC” Female
  • Weight: 1 oz.
  • RF Power Capacity: 1 KW Peak Pulse @ 1% Duty Cycle
  • FAA TSO: C74c

Reviews

always happy with Rami !

Souther F Verified Purchase

RAMI AV-22 XPDR ANTENNA TSO

January 25, 2024

Dependable, durable, and available.

Textron S Verified Purchase

RAMI AV-22 XPDR ANTENNA TSO

August 31, 2022

Nicely made antenna. Easily installee

Paul J
March 5, 2021

Was a direct drop-in replacement for my old Narco mono-pole antenna with quick, easy installation. Bonus is supporting a local USA company (RAMI is here in Michigan). Have yet to fly with it so no pirep on performance. Delivery via USPS was as quick as can be expected, especially during Covid slow downs.

Sonny W
June 29, 2020

Good quality TSOd transponder monopole antenna at a reasonable price. Fast shipping from aircraft spruce

Dan B
March 8, 2019

Transponder!

Joann D
November 23, 2018

thank you aircraft spruce for a fast and efficient delivery!

Victor R
October 25, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the RAMI AV-22 certified?

Yes, the AV-22 is certified (TSO'd).

Q: What is the difference between the AV-22 antenna and the blade type AV-74?

The AV-22 is your standard transponder antenna where the AV-74 is intended for transponder or DME application with a higher speed rating of up to 350 mph and altitudes up to 50,000 feet.

Q: What is the difference between AV-22 ans 11-17970? Would the performance be similar?

Both antennas are similar in construction and performance wise.

Q: What is the thickness of aircraft skin acceptable with the AV-22 antenna?

The AV-22 installation manual does not specify the mounting location thickness. It has a drag force of 0.41 lbs @ 250 mph. Please refer to the AC 43.13 part number 13-06923 for acceptable mounting procedures.

Q: Is this RAMI AV-22 antennae compatible for the Garmin GDL 82 ADS B unit?

No, this antenna is not recommended for use with the Garmin GDL 82. They recommend the blade style antennas.

Q: Is the RAMI AV-22 compatible with the Garmin GTX-335? Looks much better than the big, white, and expensive Garmin GA-35 antenna.

This antenna does meet the requirements per the GTX installation manual. However, if you are interested in the GTX335 with GPS you will still require the GA35 as that is a WAAS GPS antenna. The AV-22 and the GA35 are not the same antenna.

Q: Is the AV-22 compatible with the Appareo Stratus Transponders?

Per the installation manual, Appareo only recommend one antenna. The AV-74 11-05846.

Q: Which RG cable should be used with this RAMI AV-22 antenna?

Depending on the application, RG400 and RG142 are great cable for any installation.

Q: Is this okay to use with the Appareo ESG transponder?

The manual for the Appareo ESG transponder recommends using the AV-74 (p/n: 11-05846)

Q: Will this RAMI AV22 work with the Garmin GTX345? Neither it nor the CI-101 (which it says its a direct replacement for) are in Table 3-7 Acceptable UAT/1090 Antennas from the Garmin install manual.

You must use the antennas that are listed as a compatible antenna. The CI-105 is listed and will work. 11-17965.
