Unidirectional Carbon Fiber Fabric 50

$41.50/Yard
Quantity
Add to Wishlist
Part# 01-01664
MFR Model# F-2346-50"

Overview

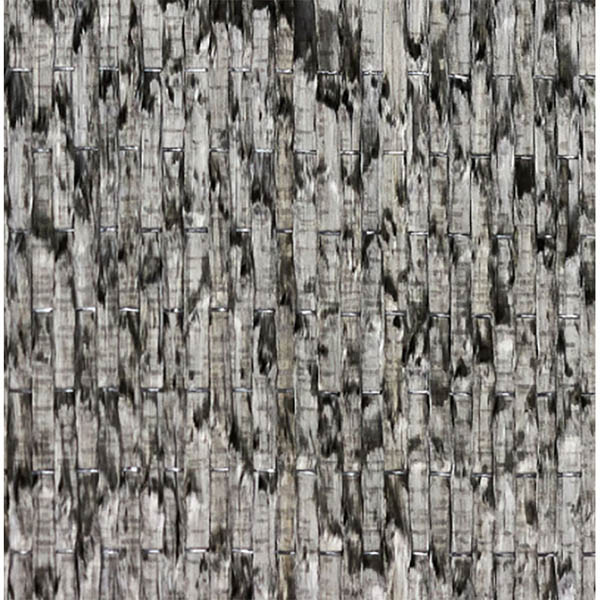

Intermediate Modulus Hexcel IM2 UNI Directional Carbon Fiber Fabric/Cloth 12k 5.7oz/193gsm. This fabric has a tow size of 12k and is a UNI Directional Fabric.

Fiber type - Fiber type available is a Hexcel IM2 12k Intermediate Modulus Fiber. This yarn is smaller in size than a standard 12k yarn and visually replicates the look of a standard strength 6k carbon fiber yarn while offering over a 60% increase in tensile strength and reducing the weight in almost half. Pound for pound the IM2 offers a material approximately 2.5 times stronger than a standard carbon fiber yarn.

Note: To harden the raw fabric into a usable form, you will need the appropriate resin or epoxy for your project.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Unit of Measure: Linear Yard
  • Material Warp: Carbon Fiber
  • Material Weft: LMFG
  • Weave: UNI Directional
  • Ends Per Inch: 10.5
  • Pics Per Inch: 3
  • Yarn Size Warp: 12k
  • Yarn Size Weft: N/A
  • Tow Size: 12k
  • Weight: 5.7oz / 193gsm
  • Resin Consumption @ 45% Resin to Fabric by Weight: 4.66opsy / 156.72gsm

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the thickness?

.015"

Q: What is the width of the fabric?

50 inches wide.
