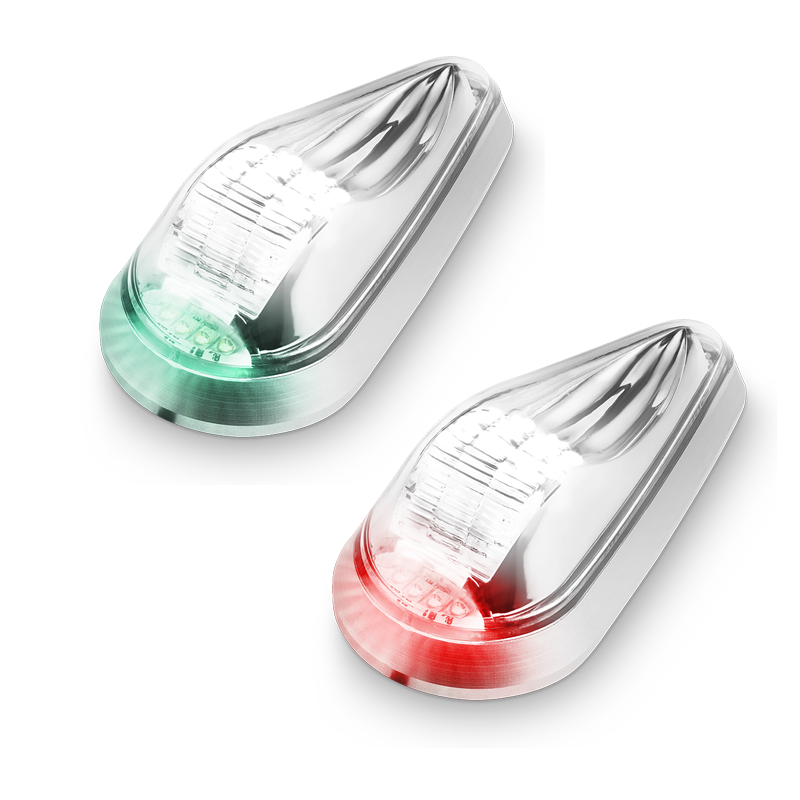

AeroLEDs Pulsar 650 Strobe For Experimental Aircraft
Pair - Left & Right
Left (Red) Only
Right (Green) Only
FREE Shipping
Overview
|
The Pulsar 650 (formally known as Pulsar NS) is a versatile two-in-one LED light designed for optimal performance and compliance. It functions as both a navigation light for directional red and green positioning and a strobe light for enhanced visibility during daylight and nighttime flights.
With its aerodynamic, low-drag profile, industry-standard mounting footprint, and a patented three-position mounting bracket, the Pulsar 650 is an ideal replacement for legacy light installations. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Dual Functionality: Navigation and strobe lighting in one compact design.
- Power Options: Compatible with both 12V and 24V systems.
- Energy Efficient: Low power consumption with no external power supply required.
- Strobe Synchronization: Available for multi-light setups.
- Easy Installation: Standard mounting screw pattern for seamless upgrades.
- Certified for Safety: FAA-TSOA/STC approved, exceeding C-30c Type I & II, and C-96a Class II standards.
- Upgrade your aircraft lighting with the reliable and efficient Pulsar 650.
-
Specifications
- Max Current: 0.65A@14VDC(average) 4.9A@14VDC(peak), 0.4A@28VDC(average) 3.05A@28VDC(peak)
- Weight: 0.24 lbs.
- Length: 4" Width: 1.9" Depth: 1.5"
- Includes patented three-position mounting bracket
Benefits
| Legacy Product Part Number | Legacy Product Model Number | Pulsar™ 650 Part Number | Pulsar™ 650 Model Number |
|---|---|---|---|
| 01-0770054-01 | A650PG28 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0770054-03 | A650PR28 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0770054-00 | A650PG14 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770054-02 | A650PR14 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771110-03 | 7111003 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0771110-04 | 7111004 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0771110-01 | 7111001 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771110-02 | 7111002 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770001-42 | W1285PG28 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0770001-52 | W1285PR28 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0770001-41 | W128514 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770001-51 | W128514 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771105-03 | 7110503 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0771105-04 | 7110504 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0771105-01 | 7110501 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771105-02 | 7110502 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
NOTE: Any highlighted RED ITEMS will require extra wiring for anti-collision function of Pulsar™ Series.
Reviews
I have not installed the lights in my experimental but Ive tested them and they work great. No heavy power supply or buzz in my headsets. A great, quality constructed product.
Verified Purchase
AeroLEDs Pulsar 650 EXP Wingtip Navigation / Strobe Light Pair Non TSO 12V
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Correct, these do not need a power supply.
The KIT-0008 is included in the box.
