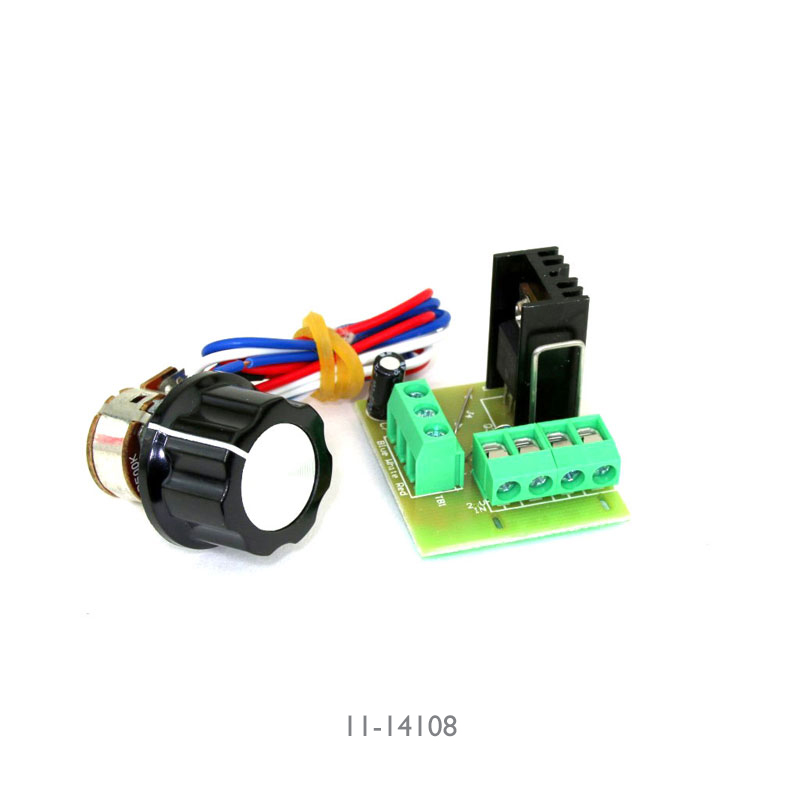

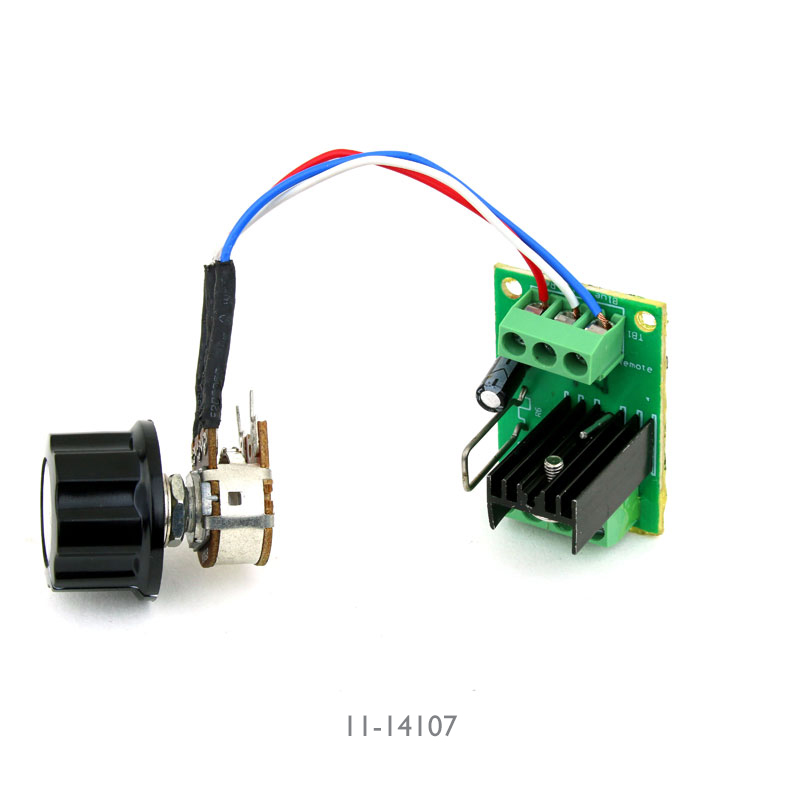

PWM Dimmer - High Power 7A - Remote Rheostat

Select Voltage:
12 Volt24 Volt
Quantity
Add to Wishlist

Overview

Extremely powerful PWM Dimmer - 7 Amps capacity. Perfect for controlling interior lighting inside your Aircraft.

Easy-to-install with smooth control rheostat. High quality fluted knob included.
(Note: Rheostat does not have an integrated on/off switch - in full counterclockwise it is OFF)

Designed to control both LED and Incandescent lighting - 7 Amps per channel. 12 OR 24 Volt Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications.

Advanced design includes over-current protection, reverse polarity protection and over-voltage protection. Modular construction - Separate Rheostat and Dimmer PCB. Rheostat shaft is 0.267" (17/64")(6.75mm). Dimmer PCB (1 1/16" x 1.5") has screw-down input and output terminals. Color-coded wiring for easy installation. 30cm of wire (image show shorter length - actual supplied wire is longer). High-quality, large-format fluted type knob. Rheostat with 12mm of thread for mounting in thicker panels.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

The dimmer looks good and came quickly, but I havent tried to install it yet.

Richard H Verified Purchase

Britta 12V Dimmer

February 8, 2023

I ordered this to control the LED Nulite instrument lighting Im installing in my 1975 Cessna 150M however, the A&P refused to install it. After opening the box, the instructions state For Experimental Aircraft Use Only. Ill be returning it and ordering a certified PWM switch. I only wish Aircraft Spruce would have clearly stated this is not for certified aircraft--like they do on most of their parts.

Cecil C
February 8, 2018
