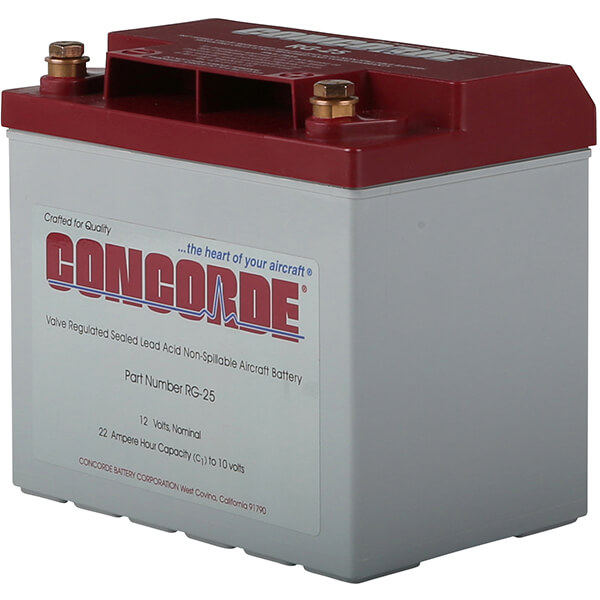

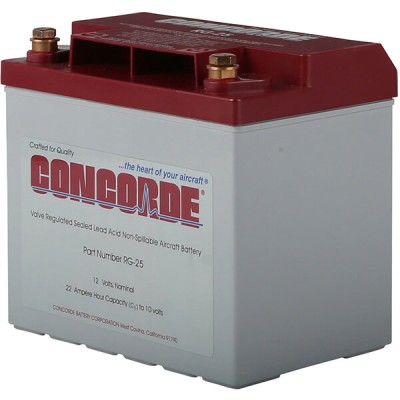

CONCORDE RG-25 SEALED LEAD ACID AIRCRAFT BATTERY

$249.95/Each
Quantity
Add to Wishlist
Part# 11-03879
MFR Model# RG-25

Overview

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Battery is constructed with non removable vent valves
  • No addition of electrolyte or water ever required for this maintenance free aircraft battery.
  • Aerobatic Batteries: This is a non spillable battery at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • AGM Battery: Manufactured with absorbed glass mat separators
  • RG® Series batteries ship non-HAZMAT

NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.

*NOTE* - The STC for some aircraft is available at an additional cost please call 877-4-SPRUCE (777823) if applicable to your aircraft.

Battery Type
Voltage
Ampere Hours
Max. Weight
Our P/N
Battery Diagram PDF
RG-25
Sealed Lead Acid
12
22
22.75 lbs.
11-03879

Dimensions

  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

fast shipment, a quality product

Leo A
November 18, 2019

Ordered in the afternoon, arrived next day before noon. Great service !

Phil C
September 16, 2019

I ordered the battery through Amy Stinchcomb Monday morning and it arrived Tuesday by 2:00pm. I ordered other parts through Amy the next Monday and they arrived Tuesday before noon.The products were delivered without a shipping charge... A real plus. Amy, the products and the service all rated 5 stars.

Steve S
August 23, 2019

We have been using Concorde batteries in our aircraft for the last seven years. It is important to keep a float charger connected when the aircraft is not flown daily and when installing this battery in a newly purchased aircraft, we added a fused charging pigtail. After a test flight which required two starts (we had to top the tanks), the aircraft was parked and a battery minder was routinely connected. The next morning when the aircraft was going to be flown, the baterry was completely dead, despite a float charger being connected for nearly 18 hours. The battery was isolated from the electrical system and connected to a different float charger. After five days when the state of charge indicator would not indicate above 75%, a call was made to Concorde Battery to seek warranty advice. The phone was answered automatically in a coherent manner. Selecting 0 immediately was answered by a comprehendable voice who redirected the call to another person who was equally concerned with identifying our problem. A suggestion was made to take the battery to a nearby distributor for evealuation or get an RMA to have it returned to the factory. Not wanting to purchase another battery while we waited to identify if this battery was damaged beyond repair, the battery was driven to the nearest distributor. The distributor met us at their door taking the battery directly to the bench where testing revealed it was at 100% state of charge and possessed the necessary cranking amps to start an aircraft. Weve not experienced this level or qualiuty of service in recent years and delighted we chose a Concorde Battery .

Square T
July 27, 2019

The battery showed up a couple days after ordering. Came fully charged and ready to go. I thought Id have to put it on the charger over night to get it full. Working great.

Serloyd L
July 6, 2019

Bought this to replace the one that had been in my airplane for over 8 years. Two day service is outstanding.

Donald B
June 28, 2019

Battery arrived fully charged and ready for install. Fit perfectly. Provided all the power it was supposed to provide.

Christiansen V
June 15, 2019

Concorde batteries have always provided the best service and reliability. Several years ago I replaced the battery in our 172 with a Gill battery, A&P recommenced, and it gave up the ghost within 5 months. Company would not honor any warranty and I got a Concorde to replace it and have stuck with them ever since.

Steven Y
April 7, 2019

I just replaced my 8+ year old Concorde RG-25 battery with a new one. I hope it lasts as long as my old one. The engine now starts really quick! I couldnt be more satisfied with it.

Ronald S
March 21, 2019

My 2nd RG-25 battery. Easy to install and works great. Delivery from Aircraft Spruce was free and quick. My previous RG-25 was 5 years old and still working but getting a little weak.

Bill F
March 18, 2019

Q&A

Q: What are the dimensions of the Concorde RG-25 battery?

We have added a tab titled Dimensions to the web page. Please review the drawing there.

Q: Are the terminals on the Concorde RG-35 Battery 5/16"?

The terminals are 8mm, which is a little larger than 5/16".

Q: What is the warranty period on RG 25

The Gill RG series when used on reciprocating aircraft has a warranty of two years. When used on turbine aircraft the warranty is one year.

Q: I just ordered the Concorde RG-25 battery. Should it be charged before installation?

All Concorde sealed batteries are shipped charged and ready for install.

Q: Is there a core credit for returning the old battery?

No, these are sold as new, outright. There is no core charge or refund associated with the purchase.

Q: Can the Concorde RG-25 be used for the Cessna 150 aircraft?

Yes, this is the correct replacement battery for the Cessna 150 aircraft.

Q: Will the Concorde RG25 fit a Cessna 120?

Yes, the RG-25 is the correct battery for the Cessna C120. You could also use the RG-25XC.

Q: Is the Concorde RG-25 the correct battery for a Piper PA 32- 260?

Yes, the RG-25 is listed as a replacement battery for the Piper PA 32-260, however, there are other batteries that will work for this aircraft, so Concorde recommends that you check the originally installed part #. The RG-25 is the replacement for original battery P/N 450-030.

Q: What are the cranking amps of the Concorde RG25? the XCplatinum has specification sheet but this does not.

RG25 has 225 CCA.

Q: I dont see the Piper PA-16 on the eligibility list for the RG-25. I currently have a Gill G25 installed so it should fit.

Yes, the RH-25 replaces the Gill G25 in application.
