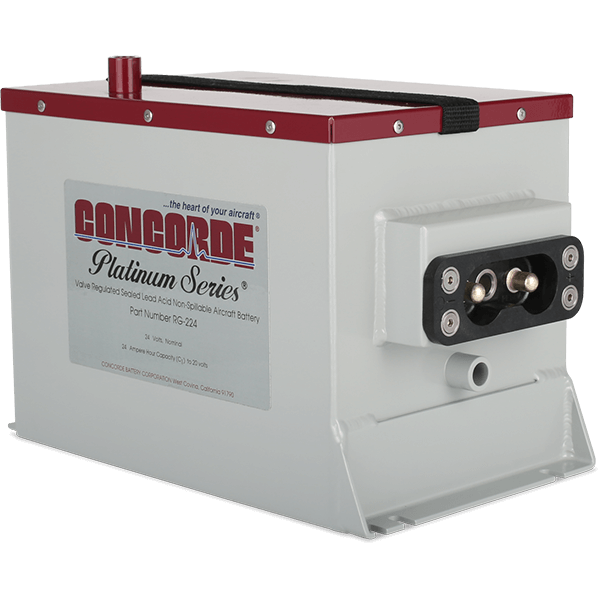

Concorde Platinum Sealed Battery RG-224

$3924.00/Each
Quantity
Add to Wishlist
Part# 11-11383
MFR Model# RG-224

Overview

The RG-224 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-224 is new, higher capacity turbine engine starting battery.

Recombinant Gas - The RGŪ Series are low resistance, valve regulated lead acid (VRLA) batteries.

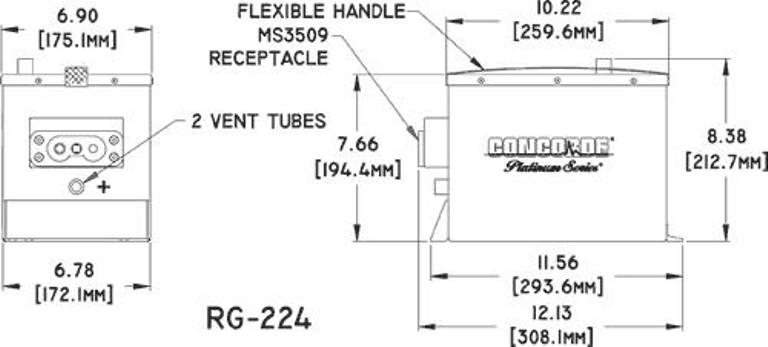

All aluminum cover and container with 2 built in vent tubes, lifting strap and welded mounting feet

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • Plates surrounded with unique PolyGuard protection against vibration and shock.
  • RGŪ Series batteries ship Hazmat Exempt

Specifications

  • Primary Aircraft Purpose: Helicopter and Turbine Aircraft Battery
  • Voltage: 24
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 24
  • Max Weight: 51.00 lb / 23.1 kg

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Please advise which aircraft model can use P/N RG-224?

Please view the Concorde Eligibility PDF in the Documents section of this web page for aircraft information.
