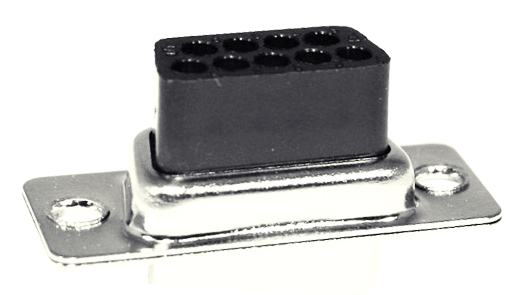

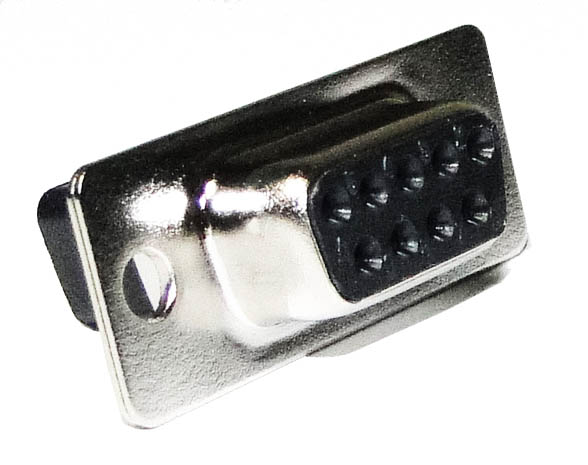

9 PIN SILVER FEMALE SUB-D CRIMP CONNECTOR
$0.91/Each
Part# 10-05731
MFR Model# 170-009-273L000
MFR Model# 170-009-273L000
Overview
| 9 Pin Silver Female Sub-D Crimp Connector. |
Features
- Low cost commercial version of military standard.
- Allows for easy loading of only the positions required using Crimp and Snap-in contacts (sold separately).
- Nickel plated connector shells have indents to provide grounding and additional retention.
- Nylon insulator has a minimum contact retention of 10 lbs.
- Contact current rating: 5 amps.
Specifications
- Shell: Steel, Tin or Nickel Plated
- Insulator: Glass-filled thermoplastic, U.L. rated 94V-O
- (230°C process temp)
Documents
Q&A
Q: Which 9 pin male connector is the mating part? Are they joined with screws? If so, does one of the connectors have nuts or threads in place?
The male connector would be part # 11-12150. Please note that these parts are not typically joined together, they usually go directly to an avionics unit. If you are needing a extender kit you can use CPC connector kits part # 11-14005
