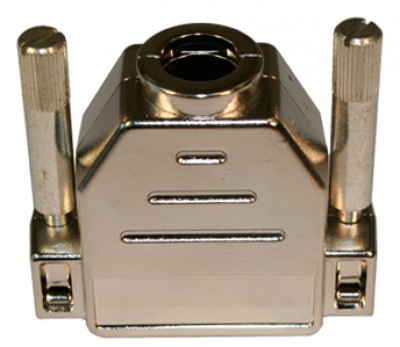

METALIZED PLASTIC D-SUB HOUSING

From $6.50 to $10.50
Description Part Number Price Buy
9 PIN SILVER SUB-D CONNECTOR CLAMP HOUSING
11-13014
$6.50
Quantity
15 PIN SILVER SUB-D CONNECTOR CLAMP HOUSING
11-13015
$7.50
Quantity
25 PIN SILVER SUB-D CONNECTOR CLAMP HOUSING
11-13016
$10.50
Quantity
37 PIN SILVER SUB-D CONNECTOR CLAMP HOUSING
11-13017
$9.99
Quantity
Subtotal $0.00
Add to Wishlist

Overview

D-Sub Backshells - Straight/Top Entry Backshell.

Features

  • Straight / Top entry.
  • 4-40 Thumbscrews supplied with backshell.
  • Perimeter sealing lips for secure sealing.
  • Available in metalized plastic and plastic.
  • Metalized plastic provides up to 60 dB shielding.

Specifications

  • Metalized Plastic: High temperature - UL 94V-O
  • Plating: Nickel over copper
  • Plastic: High temperature plastic - UL 94V-0 (Black)
  • Hardware: Steel, nickel plating
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Works as described. Seems well made and relatively compact. I did not find modification of the shell necessary. I used it with the 9-pin D connector, which uses tiny folded tabs to hold the front and back halves of the metal connector shroud together. At first, since those tiny tabs fold to the backside, there was interference with the front face of the backshell. Fixed the problem perfectly by squeezing the tabs of the connector flat against the flange with a rivet squeezer. Then the connector fit the shell perfectly. Only took me a few seconds. I would order again.

Edward M
February 10, 2020

Had to modify the clip to fit the 25 d connector

Hardey M
August 9, 2018

It had to be modified to work depth is not appropriate to hold connector

Dave G
January 14, 2019

POS. Does not fit the 15 pin connector properly. Tolerances too tight for connector dimensions, places undue stress on the hood once assembled.

Carl
June 25, 2020

The plastic housing do not fit the pin SD connector. The dimension of the flange is to thick for the plastic retainer

Dennis R
February 2, 2020

Does not fit the 37 pin sub-d connector that they sell.

Daniel P
July 7, 2018

Q&A

Q: Are they crimped or soldered?

The silver D-Sub housings do not come with the D-Sub connector. These housings will fit either the crimp or the solder type of connectors.
