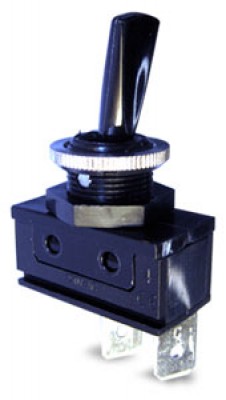

LEVER SWITCHES NON-ILLUMINATED

Select Operation:
ON-OFFON-ONON-OFF-ON
Quantity
Add to Wishlist

Overview

20 AMP Silver Contacts

Non- Illuminated
Single Pole
ON-OFF
11-103
ON-ON
11-107
ON-OFF-ON
11-123

Specifications

  • 12 volts DC: 20 amps
  • 24 volts DC: 12 amps
  • 125 volts AC: 15 amps
  • 250 volts AC: 10 amps
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

I had asked the question whether the on-off-on (dpdt) switch was 3 or 6 pin, and was told that it was 6. The switch has 3 PINS.

John
April 28, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the On-On switch a SPDT switch?

The manuf. describes it as a single pole-on/on toggle switch. Since it is an on/on it would be a SPDT type switch.

Q: Is the on-off-on switch a 6 or 4 pin?

6 pin.

Q: Are these lever toggle switches FAA approved for certified aircraft?

No. These are not FAA Approved.
