Lone Star Dc-AC Inverter Kits

From $726.00 to $749.95
Model Number Input Output Part Number Price Buy
LS03-0630212Vdc115VAC 60Hz Pure Sine Wave
11-12998
$726.00
Quantity
LS03-0630424Vdc115VAC 60Hz Pure Sine Wave
11-13001
$749.95 Add to cart for current price
Quantity
Subtotal $0.00
Add to Wishlist

Overview

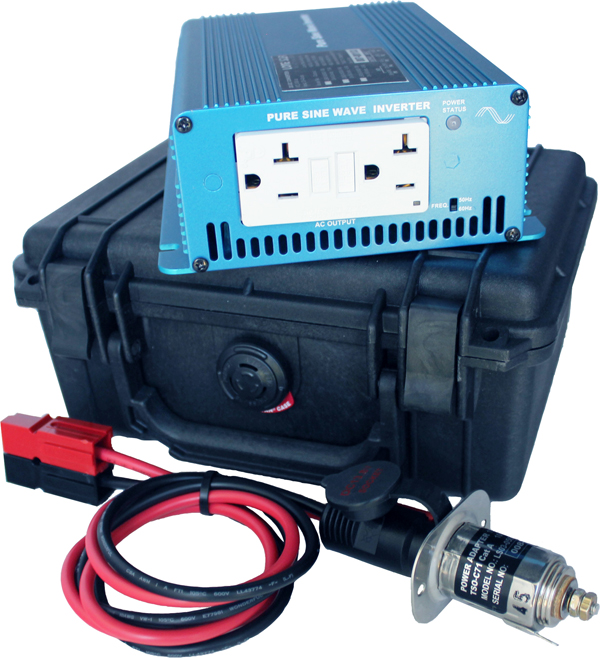

This portable inverter kit provides airborne or military vehicles with an AC outlet to operate low power devices on 115 or 220 AC voltages. The inverter kit includes an FAA -TSO Approved Power Adapter for 24vdc and a MIL C-5015 connector for 12 vdc systems, a 36 inch harness and Pelican case for transporting to and from your base of operation. The Inverter Kit meets FAA TSO, MIL STD C-5015 qualified for panel power and UL safety requirements for the inverter’s GFCI AC receptacle for operator safety.

This Inverter will operate common devices such as: iPad, iPod, cell, iPhone, Head-Set chargers, portable radios, CO2 sensors, battery backup systems, cameras for recording, remote sensing, weather data, instrumentation, laptops, EFBs, PC tablets as well as passenger entertainment products to a maximum of 200 watts. The included Power Adapter is FAA TSO approved for a straight forward installation for aircraft, rotor-craft and or military vehicle. Markets served in experimental, general aviation, business class, transport aircraft as well as public safety, military and marine applications

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Inverter: Portable Plug in Kit: 200 watts
  • Input Voltage: 12 or 24 vdc (Nominal)
  • Single Phase: PURE SINE WAVE
  • Operating Temp: -45C to +50 C
  • Circuit Protection: OV, UV, OT, SC, OC
  • Altitude: 30k Ft.
  • Size: 5.80W x 2.50H x 8.30L
  • Light Weight: 3.0 lbs.
  • DO160G RTCA Tested
  • FAA TSO Approved (Power Adapter)

Specifications

  • FAA TSO Power Adapter: LS03-05025
  • Harness 36 inches, Call for custom App
  • Efficiency: 91%
  • EMI C/R: FCC Class A, EN55022 Class A
  • Overload Surge: 400 watts:
  • Weight: 3 lbs.
  • GFCI AC Receptacle:
  • COTS Stock Program

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the Max input current at 12 VDC?

Max input current is 20 amps at 12vdc with a 200w load.

Q: How do you plug this into the aircraft?

There is a plug and harness that you hard wire to the aircraft electrical system.
