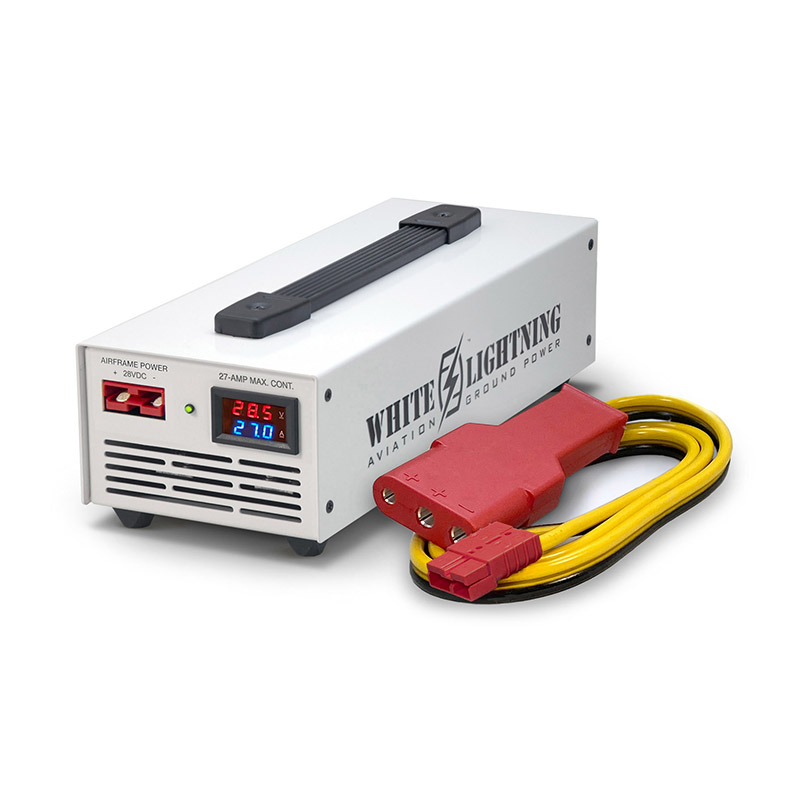

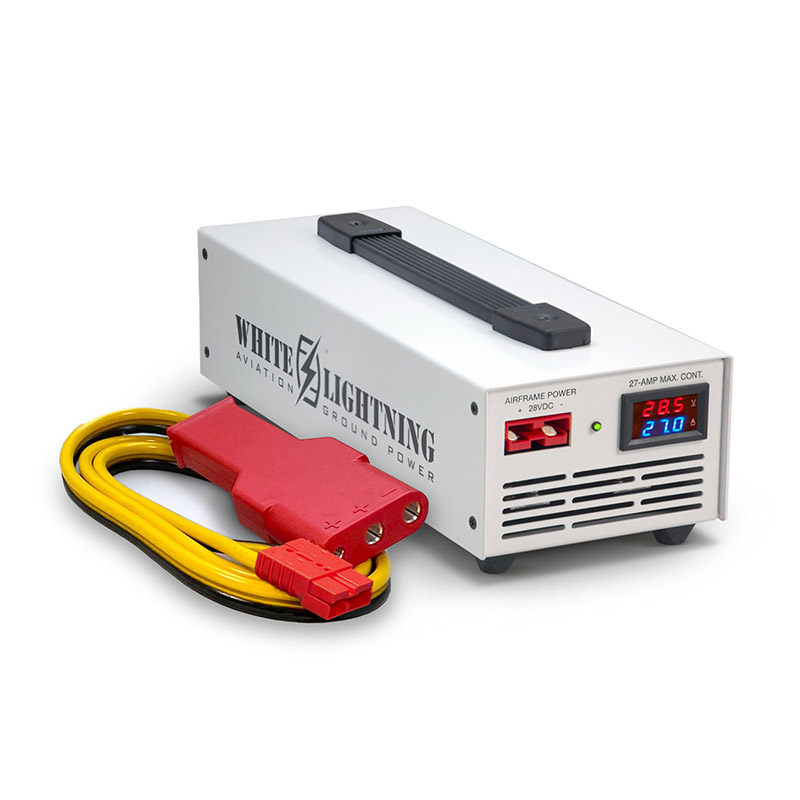

White Lightning M2827 28V Mini GPU For Certified Aircraft

$745.00/Each
Quantity
Add to Wishlist
Part# 11-18942
MFR Model# M2827

Overview

Clean, stable, airframe power for 24/28-volt aircraft. Output fixed at 28.5VDC, up to 27A maximum continuous power. Ideal for cockpit database and EFIS updates, flight planning, powered preflight, procedures training, and general maintenance. Detachable, replaceable 6 output cable with AN2551 3-pin oval plug. Fully protected operation with automatic recovery. Suitable for most piston powered aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Compact, lightweight, rugged design with collapsing carry handle
  • Color-coded, polarized output connectors prevent voltage mismatch
  • High-efficiency switching-mode power technology
  • Digital voltmeter/ammeter and operational status LED
  • Forced air cooling for long term reliability
  • Programmable timer with safety auto-shutoff
  • USB 5V accessory convenience outlet

Specifications

  • Universal Input: 90-240 VAC, 50-60 Hz, 9A@115VAC / 4A@230VAC
  • Output: 28.5 VDC up to 27A maximum continuous
  • Duty Cycle: Continuous, airframe power only, not for engine start
  • Protection: Short circuit, polarity, over temp, over current, auto-reset
  • Output Cable: Detachable 8-AWG 6 ft with AN2551 3-pin oval plug
  • Unit Dimensions: 4.25 H x 5.32 W x 13.3 L
  • Unit Weight: 9 lbs

Reviews

Nice product. Worth the extra bucks over the Schauer (the black one).

Pacificom Verified Purchase

WHITE LIGHTNING M2827 28V MINI GPU FOR CERTIFIED AIRCRAFT

October 6, 2023

We just took delivery on a 2023 Cessna Skylane and the White Lightning GPU is just what we needed and wanted to fully familiarize us in specialty functions of the G1000 on the ground, without sacrificing the onboard battery. Easy to use.

David S Verified Purchase

WHITE LIGHTNING M2827 28V MINI GPU FOR CERTIFIED AIRCRAFT

April 7, 2023

Works great on my Cirrus SR22NA! Highly recommend

Tony S Verified Purchase

WHITE LIGHTNING M2827 28V MINI GPU FOR CERTIFIED AIRCRAFT

February 28, 2023

This was perfect for running the G1000 stack for training and database updates. Although technically not a charger its .5 volt over nominal would be helpful to keep things topped off.

Jeff R Verified Purchase

WHITE LIGHTNING M2827 28V MINI GPU FOR CERTIFIED AIRCRAFT

January 13, 2023

Arrived on schedule and as advertised

Stan P Verified Purchase

WHITE LIGHTNING M2827 28V MINI GPU FOR CERTIFIED AIRCRAFT

August 17, 2022

If you do regular maintenance on your aircraft - this makes things a lot easier. I ordered the one with the Beech plug for my Baron. Doing work running fuel pumps, doing a gear swing, or avionics updates/changes are no issue. No worries about draining the batteries-just plug it in, turn it on, and work for ours. Has a a volt/amp readout right on the front, great quality, fast shipping from ACS.

Stephen K Verified Purchase

WHITE LIGHTNING M2827 28V MINI GPU FOR CERTIFIED AIRCRAFT

June 11, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Where are these manufactured and what is the warranty period?

Made in the USA and they have a 1 year warranty.

Q: What about plugs/cables for 230V? Is there an AC cable for the European 230V mains in addition to the DC GPU connection?

There is no european plug with this unit. The customer will have to buy an adapter to US plug from there country.

Q: The VAC input range is 90 to 240, what is the DC OUTPUT at 115, and, at 230VAC?

Input: Universal, world-wide, 85-264 VAC, 47-63 Hz
Output: 28 VDC, 27 Amps maximum continuous.
