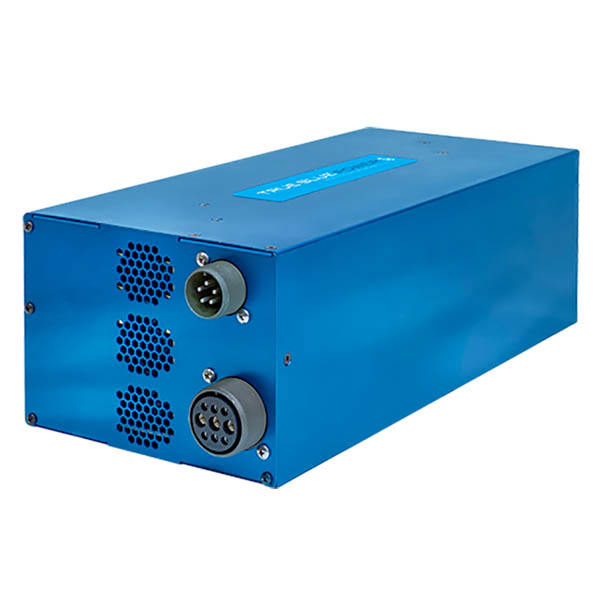

True Blue Power Frequency Converter TFC4000

0 Reviews 0 Answered Questions
$34391.00/Each
Quantity
Add to Wishlist
Part# 10-07601
MFR Model# 6434000-1

Overview

Quiet the cabin and cut replacement costs with the quietest and most reliable frequency converter on the market. The TFC4000 weighs less than 20 pounds, making it the lightest converter in its power class and easier to install in tight, hard-to-reach spaces.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 4,000 watts of output power
  • 13 A input phase current
  • 93% efficiency
  • Single phase, true sine wave < 3% total harmonic distortion output wareform
  • -0.8 to +0.8 power factor
  • Remote On/Off
  • Short circuit, under-voltage, over-voltage, overload (up to 150% for 5 minutes, without damage), DC offset protection
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Model Number: TFC4000
  • Part Number: 6434000-1
  • Input Voltage:
  • 115 VAC (L – N)
  • 360 – 800 Hz
  • 3 Phase
  • Input Phase Current: 13 A
  • Output Voltage:
  • 115 VAC
  • 60 Hz
  • 4 kVA
  • Output Power: 4,000 watts
  • Weight: 18.9 lbs (8.57 kg)
  • Altitude: 55,000 feet
  • Temperature: -67°F to +185°F (-55°C to +85°C)
  • Mating Connector: 9019110-4, 9019507-2
  • Case: Anodized aluminum, blue
  • Certification:
  • FAA PMA approved
  • RTCA DO-160G
