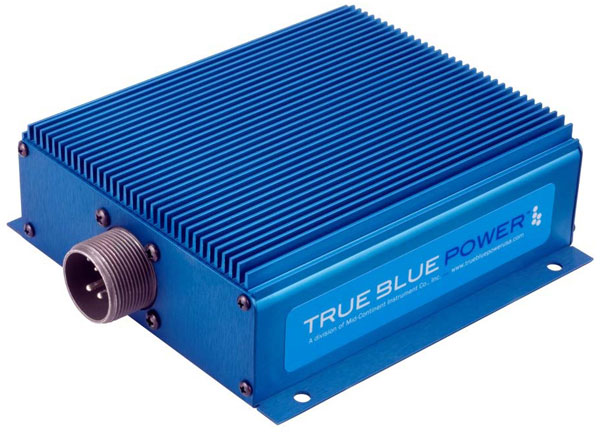

True Blue Power DC To AC Static Inverter 250 Watts - 115/26 Vac

0 Reviews 0 Answered Questions
$3822.00/Each
Quantity
Add to Wishlist
Part# 11-14267
MFR Model# 6430250-3

Overview

The highly-efficient TI250 Series DC-to-AC Inverter produces 250 watts of power from the aircraft’s 28 VDC input. Engineered to run cooler and featuring a fanless design, the TI250 Series saves energy and reduces weight. At only 2.2 pounds, these inverters are lighter and smaller than competing units and include overload, short-circuit and ground fault interrupter protection.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Supplies 250 watts of power to multiple cabin accessories
  • Compact design — lighter and smaller than competing inverters
  • Lightweight — 2.6 lbs
  • Remote On/Off feature
  • 250 VA output power
  • 87 – 90% efficiency
  • Input Voltage: 20 – 36 VDC
  • Input Current: 10A at 28 VDC input
  • Output Voltage: 115/26 VAC ± 3%
  • Frequency: 400 Hz ± 0.1 Hz
  • Single phase, true sine wave output
  • Input transient, overload, and short-circuit protection up to 150% of rated load without damage
  • Rated from –65°F to +160°F (-55°C to +70°C)
  • FAA TSO-C73 certified and RTCA DO-160G qualified
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Input Voltage: 20 – 36 VDC
  • Input Current: 10A at 28 VDC input
  • Output Voltage: 115/26 VAC ± 3%
  • Output Power: 250 VA
  • Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
  • Output Frequency: 400 Hz ± 0.1 Hz
  • Efficiency: 87 – 90%
  • Power Conversion Method: Current mode control
  • Weight: 2.6 lbs
  • Altitude: 55,000 ft
  • Humidity: Tested to greater than 95% for 10 days, temperature cycle of 100°F to 150°F
  • Temperature: -65°F to +160°F (-55°C to +70°C)
  • Protection: Input transient, overload, short-circuit protection (up to 150% of rated load without damage) Ground fault interrupter (GFI) protection
  • Mating Connector: MS3106A-18-9S (MCI P/N 9016905-1, -2)
  • Case: Anodized aluminum extrusion, blue
  • Certification: FAA TSO-C73 certified and RTCA DO-160G qualified
