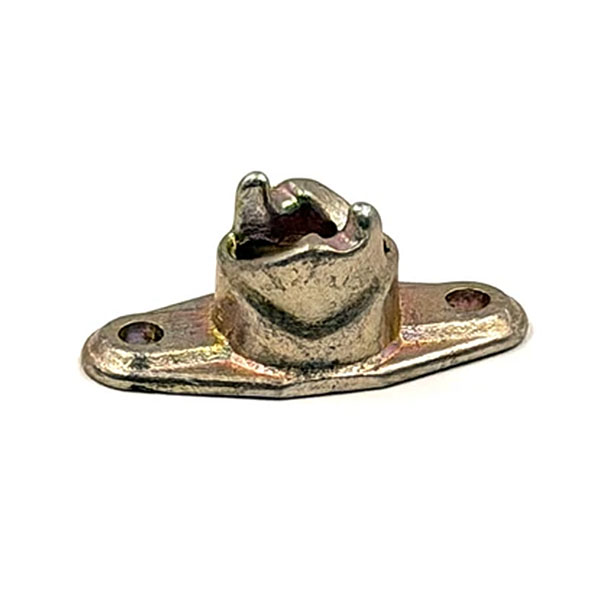

| Description | Part No. | Price | Buy |
|---|---|---|---|
| 2600/2700 Series - Fixed Depth, Rigid Receptacle, Narrow Width, Plain Rivet Holes | 212-12N | $2.75 | |
| 2600/2700 Series - Fixed Depth, Rigid Receptacle, Narrow Width, Csk Rivet Holes | 212-12ND | $3.95 | |

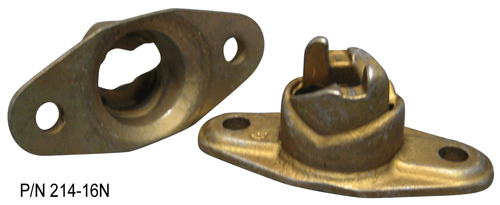

| 4002 series - Fixed Depth, Rigid, Narrow Width, Plain Rivet Holes | 214-16N | $4.40 | |
| 4002 Series - Fixed Depth, Rigid Receptacle, Narrow Width, Csk Rivet Holes | 214-16ND | $8.90 | |
| 4002 Series - Fixed Depth, Floating, Plain Rivet Holes | 244-16 | $4.65 |
- JUMP TO
- Overview
- Drawing
- Reviews
- Q&A
- View in Catalog
Overview
|
2600 Series - Small enough to fit in limited mounting space and light weight. These Camloc fasteners have a 600# ultimate tensile load capacity. 4002 Series - The Modern Standard in Quick Release Fastening Systems. They have an 800# working strength and 1050# Ultimate Tensile load capacity. |
Drawing
Reviews
Verified Purchase
CAMLOC RECEPTACLE 244-16
These are perfect for our project. We elected for the non-countersunk version. It is important to know what length of fastener to order along with these though. I suggest ordering a few different lengths to allow for some options.
Excellent service, price, and delivery on every order of this frequently purchased part.
Exactly what I needed.
Works well on schools Piper Aztec
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The rivet spacing is 3/4" from center hole to center hole on the unit.
Regarding 214-16N, this would take a plain rivet for the mounting holes. For P/N# 214-16ND, this would use a countersunk (CSK) rivet for the mounting holes. The mounting holes are laid out differently for the type of rivet it requires.
The rivet spacing is 1" +/- .003" .
Per the vendor certs, this meets TSO C148.
You would just need to measure the total material thickness.
