| Part No. | Description | Price | Buy |
|---|---|---|---|
70346-00 | Recognition Light (14V No Lens) | $62.75 | |
70346-01 | Recognition Light (28V No Lens) | $83.75 | |
70346-02 | Recognition Light (14V Clear Lens) | $80.85 | |
70346-03 | Recognition LIght (28V Clear Lens) | $79.95 | |
70346-04 | Recognition Light (14V Optic Lens) | $81.90 | |
70346-05 | Recognition light (28V Optic Lens) | $79.95 |
Overview

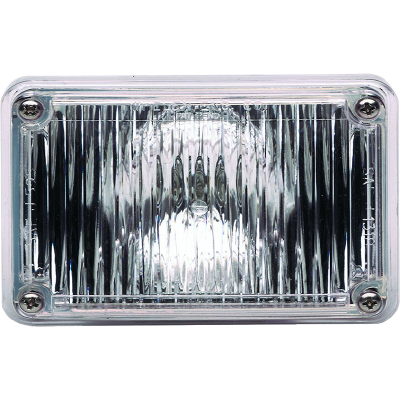

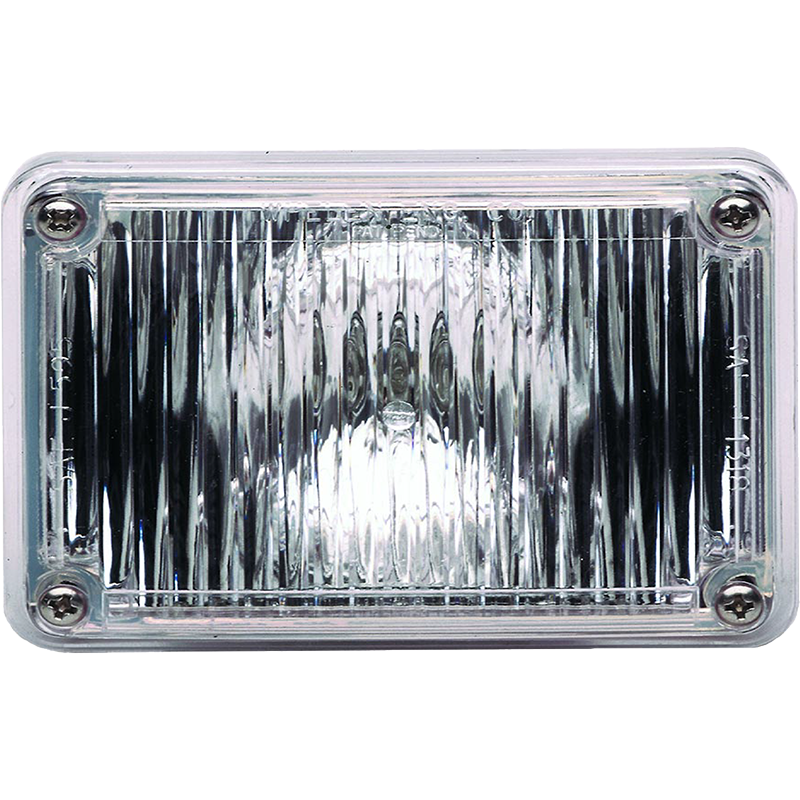

| Recognition/Landing light assembly which produces up to 80,000 beam candle power using only a 35 watt lamp. Available with an optic spreader lens for taxiing, a clear lens for spot or without a lens for custom applications. |
 |
WARNING: This product can expose you to chemicals including Lead, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Specifications
- Weight without Lens: 0.16 lbs.
- Width: 4.25
- Height: 3.0
- Depth: 2.9h
- Weight with Lens: 0.28 lbs.
- Power Consumption: 2.5 amps @ 14 VDC, 1.25 amps @ 28 VDC
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The -00 does not have a lens and the -04 has a lens. No other difference.
One has a optic lens that spreads the beam for taxing, and the other clear lens is use for spot lights(landing.) The light, bulb and brightness will be the same for both units.
No, these are not LED.
Whelen recommends our part number 11-11189 as a LED replacement.
The bulb is potted in this assembly, it cannot be replaced.
