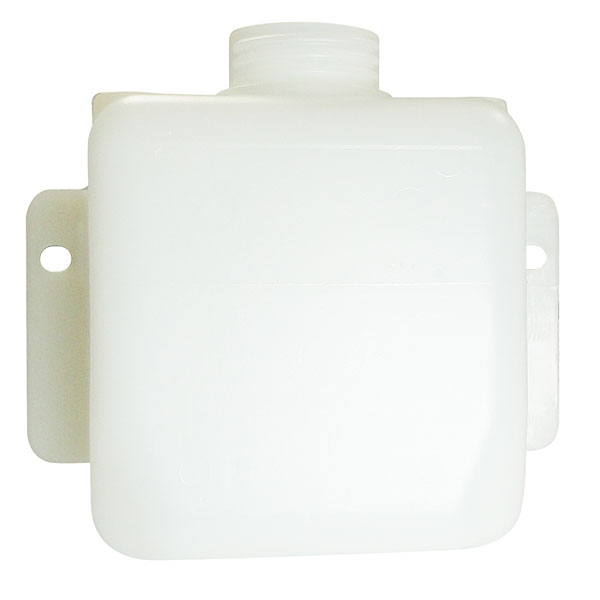

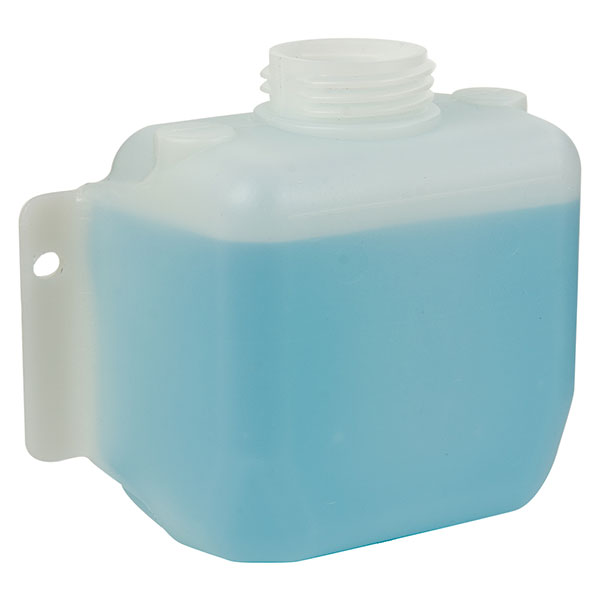

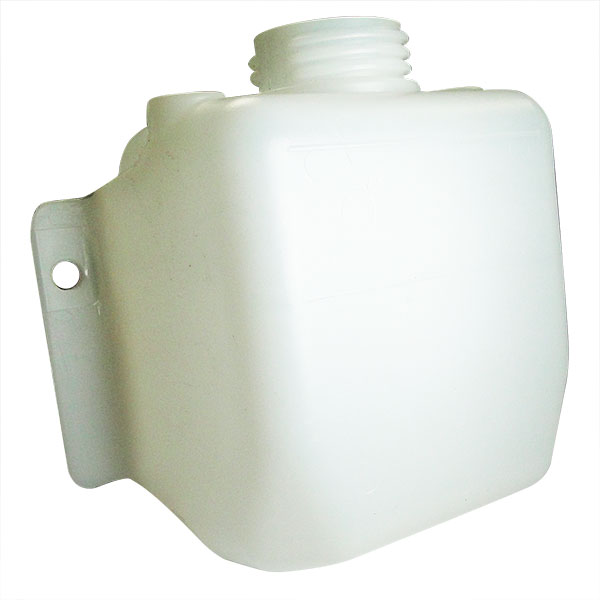

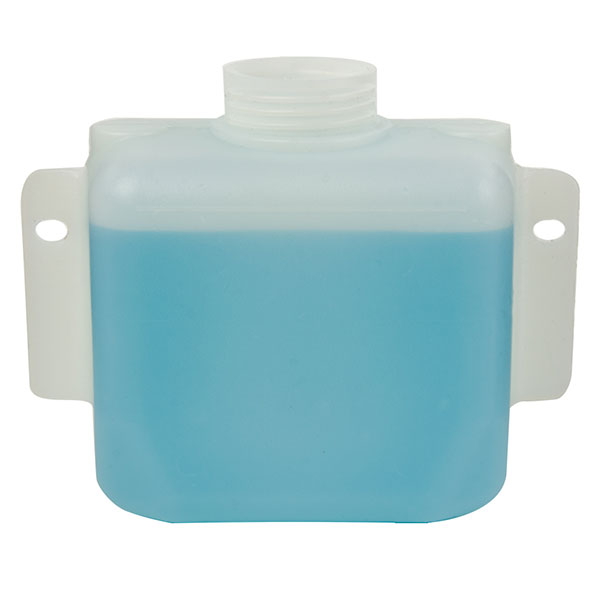

1.5 Quart Oil Or Water Reservoir Tank

$21.80/Each
Quantity
Add to Wishlist
Part# 15-08320
MFR Model# 8790

Overview

Constructed of high density polyethylene, this blow molded multi-purpose tank offers excellent durability and resistance to most chemical and fluids. All sizes nominal. Height includes neck & fittings. Width includes mounting tabs. Max working temperature is 180-deg F and max working pressure is 5 PSI.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Blow molded seamless wall construction
  • Height with neck: 6.67"
  • Some tanks have rugged mounting tabs with slots
  • Tanks are UV resistant, accessories are not
  • 100% leak tested prior to shipment
  • Do not meet CARB/EPA requirements; not for fuel
  • Maximum pressure: 5 psi
  • Maximum temperature: 180°F

Specifications

  • 7.74" L x 3.62" W x 5.9" Hgt.
  • (2.25" Neck)

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the tank include a cap?

No it does not but we have part number 15-06936-1 that would work.
