| Engine Application | Description | Part Number | Price | Buy |
|---|---|---|---|---|
| 337UL, 447UL, 503UL | Aircooled Basic Kit | 15-06473 | $635.17 | |
| 337UL, 447UL, 503UL Click Here for Kit Components | Deluxe Kit, 5 Ft Battery Cable | 15-05370 | $808.67 | |
| 337UL, 447UL, 503UL Click Here for Kit Components | Deluxe Kit, 11 Ft Battery Cable | 15-08346 | $808.67 | |
| 337UL, 447UL, 503UL | Oil Injection Kit for use Without Pull Start | 15-08328 | $100.00 | |
| 337UL, 447UL, 503UL | Oil Injection Kit for use With Pull Start | 15-08345 | $90.00 | |
| 337UL, 447UL, 503UL | Pull Start Retention Kit | 15-05373 | $135.00 | |
| 532UL Points | 532 Points Basic Kit | 15-08365 | $635.17 | |
| 532UL Points Click Here for Kit Components | 532 Points Deluxe Kit, 5 Ft Battery Cable | 15-08378 | $808.67 | |
| 532UL Points Click Here for Kit Components | 532 Points Deluxe Kit, 11 Ft Battery Cable | 15-08380 | $808.67 | |
| 532UL CDI | 532 CDI Basic Kit | 15-08364 | $635.17 | |
| 532UL CDI Click Here for Kit Components | 532 CDI Deluxe Kit, 5 ft Battery Cable | 15-08381 | $808.67 | |
| 532UL CDI Click Here for Kit Components | 532 CDI Deluxe Kit, 11 ft Battery Cable | 15-08383 | $808.67 | |
| 462UL, 582UL, 618UL, 670 | Water Cooled Basic Kit | 15-06472 | $635.17 | |
| 462UL, 582UL, 618UL, 670 Click Here for Kit Components | Water Cooled Deluxe Kit, 5 Ft Battery Cable | 15-08348 | $808.67 | |
| 462UL, 582UL, 618UL, 670 Click Here for Kit Components | Water Cooled Deluxe Kit, 11 Ft Battery Cable | 15-05369 | $808.67 | |
| Accessories | Installation Kit, 5 ft Battery Cable | 15-08340 | $173.50 | |
| Accessories | Installation Kit, 11 ft Battery Cable | 15-08341 | $173.50 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

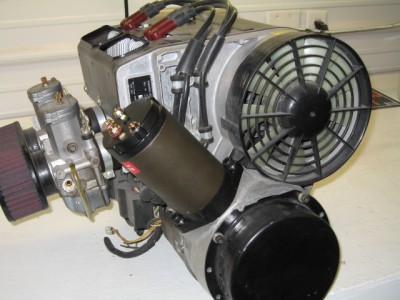

The GPL Starter Kit for Rotax 2 stroke engines make adding electric start capabillities to your engine simple. The kit installs
on the magneto end and only adds 3 inches to the length of the motor with the pull start retention kit installed, even less
without pull start. For air cooled engines with oil injection you can add the Oil Injection Kit to contine to use the oil pump.

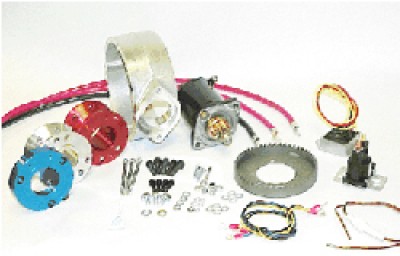

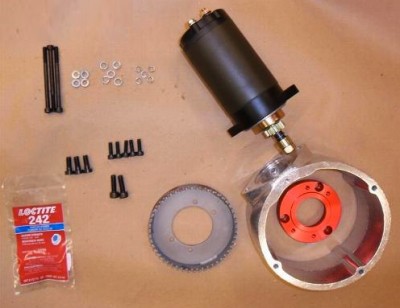

The basic kit comes with everything you'll need to install the starter on the engine. You can also purchase the Installation Kit that includes all the parts required to hook up the electrical portion of the installation. In the Installation Kit you'll receive voltage regulator, battery cables, starter button, starter solenoid and more. There two Installation Kits available and the only difference is the length of the positive battery cable, 5 foot or 11 foot. The Deluxe Starter Kits include the Basic Kit as well as the Installation Kit allowing you to have everything necessary to complete the installation. For a complete list of what's included please download the instructions here: GPL Instructions (PDF) |
Reviews
I have been using the GPL starter on my Hurricane with the Rotax 503 for 10 plus years with great success. I have mounted the GPL starter with out the pull starter. I am using the aluminum plate to seal up the adapter plate. I would highly recommend this starter for the Rotax 2 stroke engines.
Excellent
Kit was missing a bolt
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This kit comes with the 02-26-D4 Casting.
This is the starter kit for the Rotax 503. It does not include the engine.
Yes a regulator/rectifier is included in the deluxe kit.
The basic kit comes with everything to put the starter on the engine, you would need the deluxe kit to get the cables and electrical connectors.
