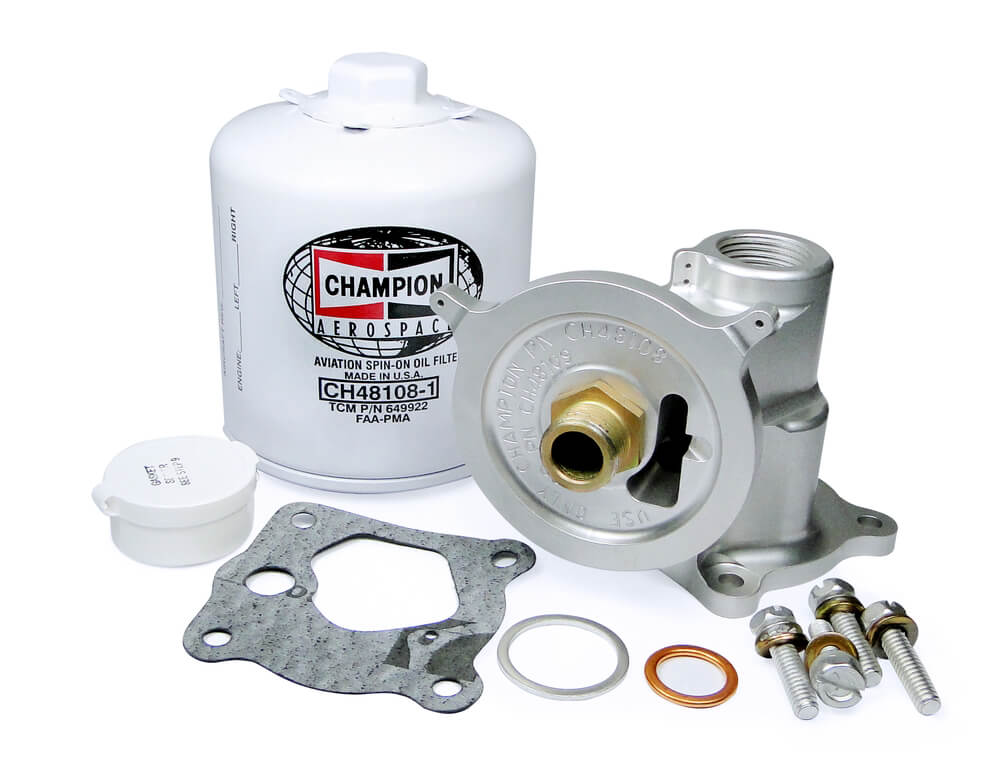

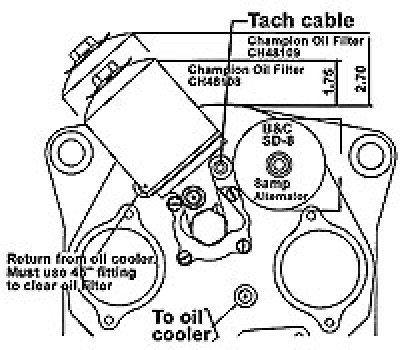

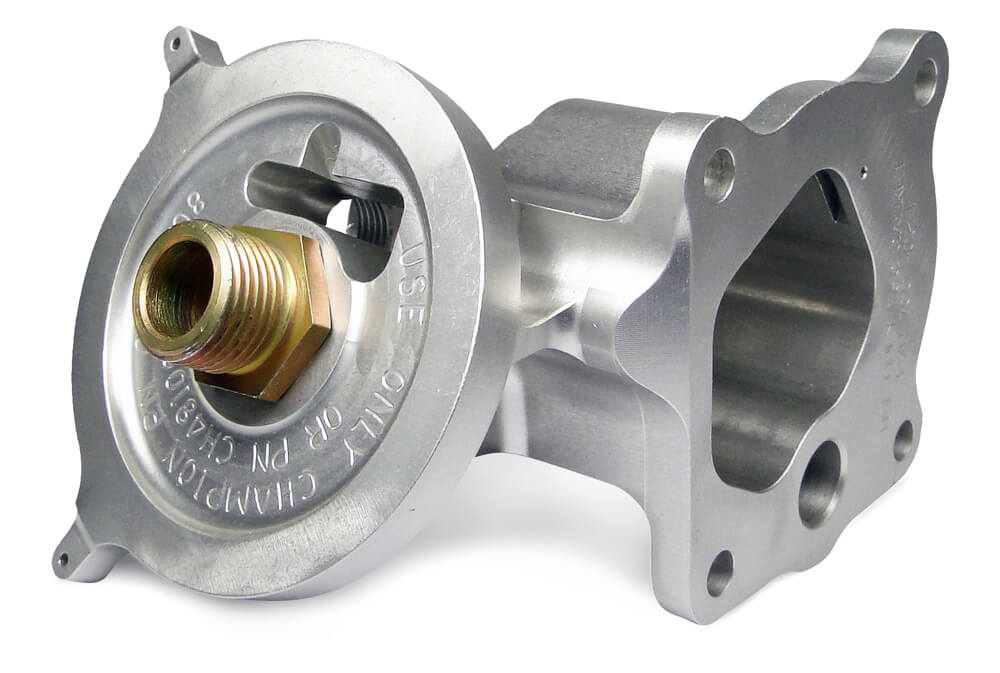

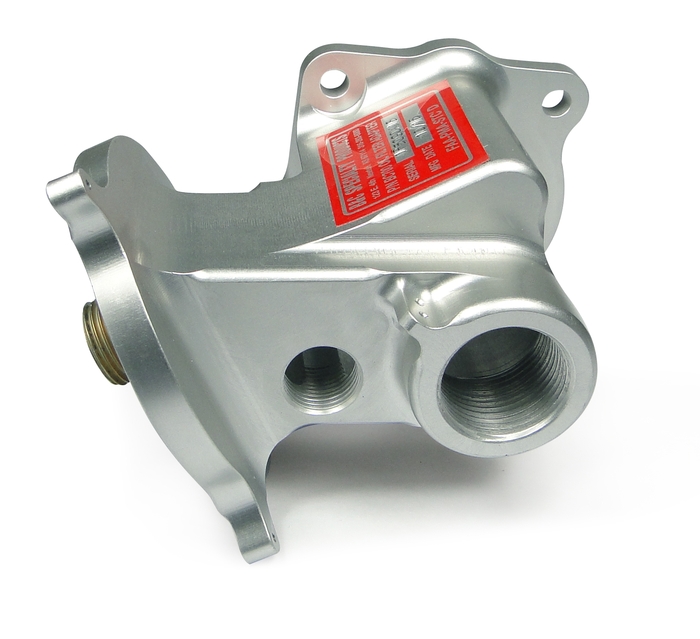

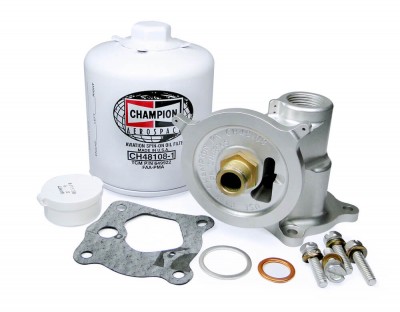

The original 90-degree oil filter adapter for Lycoming engines, precision CNC machined from billet aluminum. Designed to provide a high-quality replacement for the stock Lycoming oil screen or horizontal spin-on filter adapter, the BC700 mounts directly on the engine accessory case without interference with the magnetos, vacuum pump, or standard mechanical tach drive. STC/PMA on Lycoming 0-235; O, IO, LIO, AIO, AEIO-320; O, IO, LIO, HO, HIO, TIO, AEIO-360; O, IO, HIO, TIO, LTI, AEIO-540 & IO-720 series engines. For STC request form: Click here Adapter kit also includes a new gasket, crush washers, mounting bolts, and CH48108-1 filter. Weight: 1 lbs. (with filter: 2.30 lbs). Three sizes of spacers – all CNC machined from solid billet aluminum – are also available at additional cost, facilitating installation on a wide range of aircraft. Every spacer kit comes complete with appropriate hardware and an additional mounting gasket. Please contact Aircraft Spruce ® with questions regarding airframe fit and engine applicability. |
![]() |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
B&C BC700-1 Oil Filter Adapter Kit STCD
Excellent, well engineered and produced part. It fits. Installation instructions are precise and complete. The B&C website provides the STC paperwork with ease and efficiently. Great product.
B&C BC700-1 Oil Filter Adapter Kit STCD
*****
B&C BC700-H Oil Filter Adapter Kit, Homebuilt
High quality and simple installation
I did not receive any STC paperwork with my oil filter adapter.
Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, however the STC paperwork may be requested from B&C direct.
Yes, the BC700-H will accept a Vern-a-Therm and standard-sized oil temperature probes (tube-type or electric).
