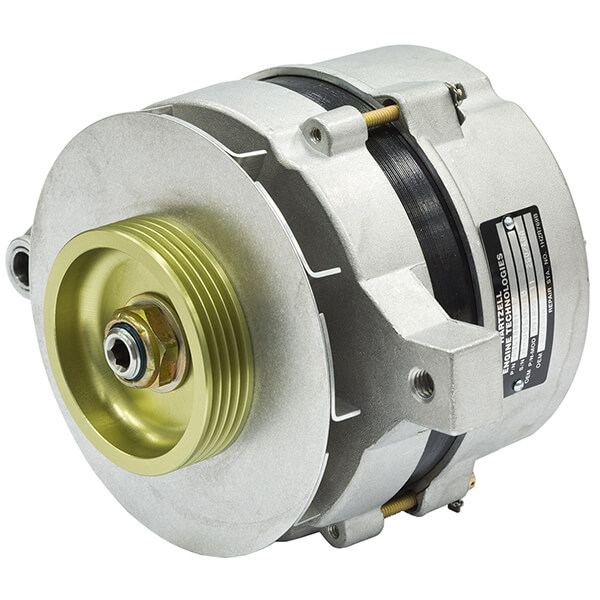

HARTZELL ASG SERIES ALTERNATOR - OVERHAULED

From $644.00 to $1005.00
Model Number Product & Application Information Acceptable Cores PN Price Buy
ASG10001-13R60A/28V, Small Frame Ford mount eligible to replace Cessna/Ford alternators used on several legacy 28V single engine Cessnas, including 152, 172, 177, 180, 128, 206 and 207. Replaces Ford DOFF10300B (Cessna P/N C611503-0101 and -0102).C611503-0101 & -0102
07-18003-1
$768.00
Quantity
ASG10001-17R60A/28V, Small Frame Ford mount used on Cessna 172R, 172S, 182S and 182T, as well as being eligible to replace Cessna/Ford alternators on legacy 28V, 188 and 207 model Cessnas. Replaces Ford DOFF10300B (Cessna P/N 1570213-7) and Cessna P/N 9910591-5 and -111570213-7, 9910591-5 & -11
07-18004-1
$729.00
Quantity
ASG10001-18R60A/28V, Small Frame Ford mount used on Cessna 206H, T206H. Replaces Cessna P/N 9910591-6 and -1299105916 & -12
07-18005-1
$644.00
Quantity
ASG12000-1R-PMA95A/28V, Large Frame Ford mount is eligible on many 28V legacy piston engine Cessnas, including: 182, R182, T182, TR182, A188, T188, U206, TU206, 207, T207, 210, T210, P210, and T303. Replaces Ford E3FF10300AA (Cessna P/N C611505-0102) and Cessna P/N 9910592-1.C611505-0102 & 9910592-1
07-18006-1
$903.00
Quantity
ASG12000-2R-PMA95A/28V, Large Frame Ford mount used on all Cessna 208s. Replaces Cessna P/N C611505-0201 and 9910592-2.C611505-0201 & 9910592-2
07-18007-1
$1005.00
Quantity
ASG12000-3R-PMA95A/28V, Large Frame Ford mount used on Cessna 182S, 182T, T182T, 206H, T206H with 95A option. Replaces Cessna P/N 9910592-3.9910592-3
07-18008-1
$800.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

ASG Series alternators were originally developed by Aero Electric and are OEM on several Cessna applications and PMA replacements for out-of-production 24V Ford alternators. The ASG aircraft alternator designs incorporated several improvements over the Ford alternators they replaced.

Additional core charge added to purchase at time of checkout
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Fast service

Jezreel M
December 14, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this ASD series of Hartzell alternators have a life limit?

This alternator series does not have a life limit established. The alternator is considered "on-condition" until no longer serviceable.
