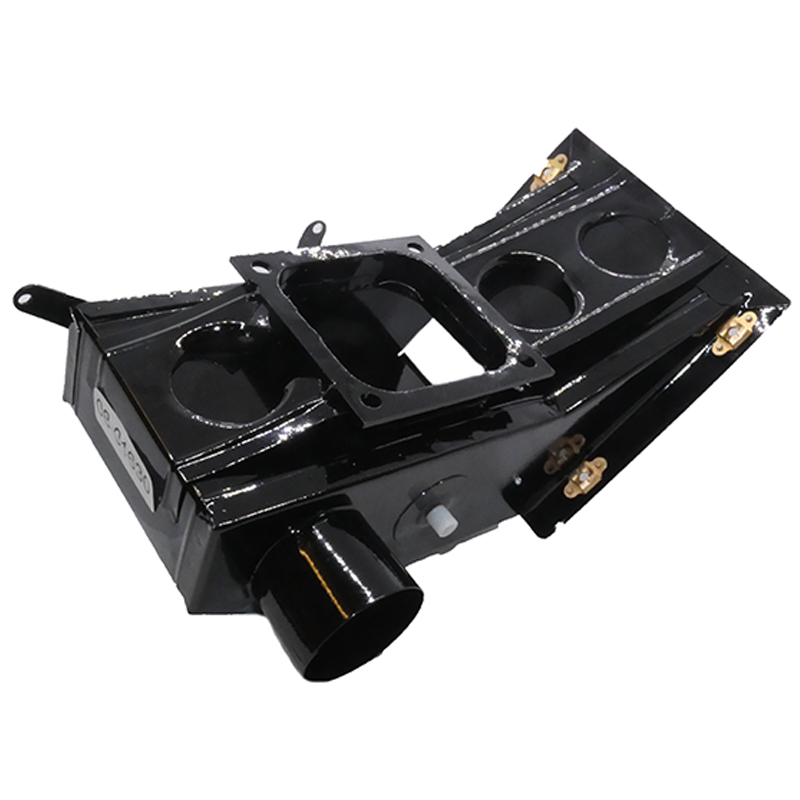

Heat Box For Ma4-5 Carburetors

Add to Wishlist
Part# 08-01630


Similar to Cessna 170 box. Fits Lyc. 0-360, 0-470, etc. Uses brackett BA-5110 filter.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -

  • Frequently Purchased With
  • Customers Also Viewed



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this heat box for MA4-5 carburetors FAA Approved? Part # 08-01630

No, these do not have an FAA/PMA approval.

Q: What gasket goes with heat box #08-01630?

The gaskets are sold separately. The air filter gasket is part number 35923, and bottom carb gasket is part number 652158.

Q: Will this heat box work with a MA-5 carburetor?

We do not have an MA-5 carb, or mounting pattern for the MA-5, but this heat box has a sqaure hole pattern, and the mounting holes have approx. 3-1/4" center hole to center hole spacing.

Q: Do you have rough dimensions of the assembly? Is this steel or aluminum? How much does it weigh? Does it require additional hardware bound the filter?

Per Mfg: Material: steel | Weight: 1.5 Lbs | Length 11" | Wide 4.5". Yes, you will need additional hardware that may come with the filter assembly to mount it.

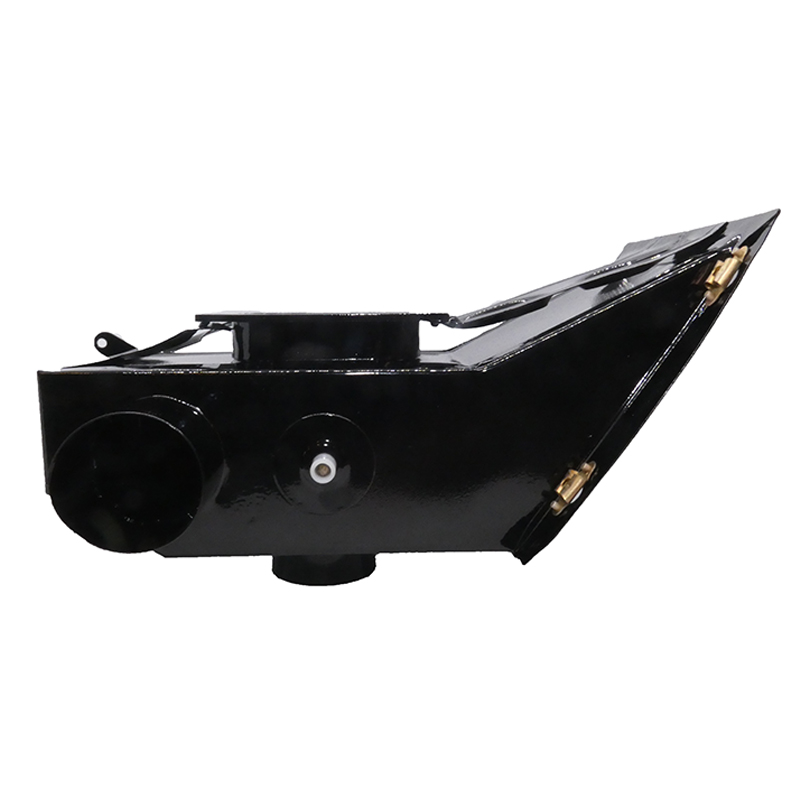

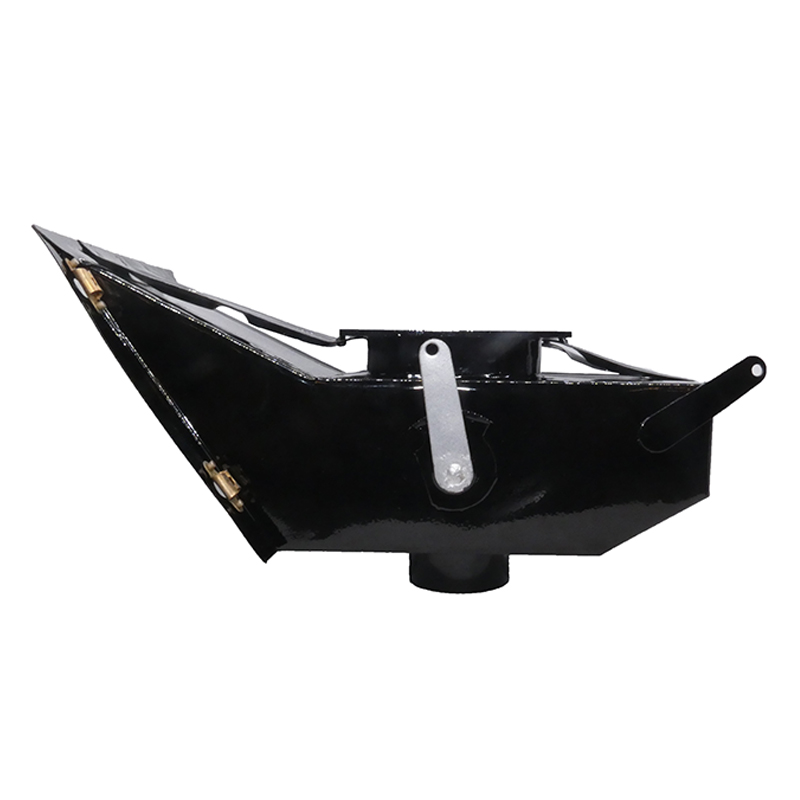

Q: Does it have the carb heat inlet on the side opposite that visible in the picture? Show a photo of the other side please

No, this only has one port on the side.
