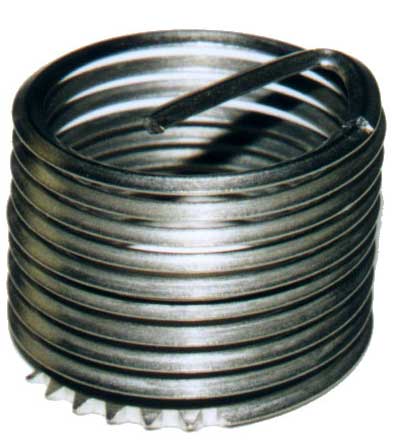

18mm long Heli-Coil aviation grade spark plug inserts. |
![]() |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Had to replace the Helicoil on a cylinder after the insert was torn out attempting to chase the threads with the crap ATS 20200 chaser which is about 10 thousands larger than a new spark plug. Threw the chaser in the trash and ordered two of these in case things didnt work out and it was a good thing! These are sized nearly perfectly for narrow or wide deck cylinders so if your depth stop is set slightly too long you could insert it into the cylinder and need to rip it out and try again. I recommend setting the depth stop a couple of threads shorter than your spark plug, then removing the stop and turning the bare insertion tool while visualizing the stakes so you can position the Helicoil precisely where you want it to stop. Didnt have a very expensive aircraft Helicoil staking tool so used red Loctite when inserting in case plier staking isnt sufficient.
Did not work, too large. Needed smaller diameter which wasn’t available through Spruce.
Heli-Coil Insert 18MM X 1/2
Spark plug heli coil. Quick shipping and worked as desired.
Heli-Coil Insert 18MM X 1/2
Perfect ! Thanks a lot !
Heli-Coil Insert 18MM X 1/2
Order came in timely fashion. Part broke on install. Ordered 3 more. Those came in timely fashion. Do not attempt this install without the proper tool.
Heli-Coil Insert 18MM X 1/2
For long reach plugs - use a tool that’s in good condition and make sure the threads are clean and oiled
Heli-Coil Insert 18MM X 13/16
Worked fine.
Heli-Coil Insert 18MM X 1/2
This is the real deal for aircraft engines, but dont think you can just thread it in easily. Use the Helicoil insertion tool AFTER youve carefully run the Helicoil stepped tap, with lots of aluminum cutting fluid or grease on it, through the spark plug hole, repeatedly until it theres little resistance to turning it. MAKE SURE THE PISTON IS NEAR THE BOTTOM! Put the coil in the insertion tool with about one thread of the coil exposed and hold the tool inner shaft and outer sleeve so the exposed coil is wrapped tightly to the inner shafts threads. Get the tool centered on the hole and square with it (do this more by feel than sight). Then slowly rotate the entire tool without allowing the coil to loosen from the threads on the inner shaft. It will probably take many tries, so be patient, its never easy with airplanes. Dont be afraid of removing the coil from the tool and starting over, just be very careful with the coil so you dont distort it or break the tang off. Once the coil gets threaded into the cylinder, hold the outer sleeve and turn the inner shaft until the coil clears the outer sleeve, then screw the coil so the end of it is about one thread inside the hole. Unscrew the inner shaft from it and inspect. If it looks good, use a long needle nose pliers to grab the end of the tank and wiggle it in and out about 1/16 until it work hardens and breaks off. DONT DROP IT INSIDE THE CYLINDER! Then you need the staking tool to drive the serrated end of the coil into the cylinder head, to lock it in place. Otherwise, it will screw out with the sparkplug the next time you remove one. USE SPARKPLUG THREAD LUBE (black liquid) AND A FRESH OR ANNEALED WASHER WHENEVER INSTALLING A SPARKPLUG! Silver anti-seize goop is NOT sparkplug lube...
Heli-Coil Insert 18MM X 1/2
Quality product - works as intended. May look oversized when you get it but it has to be to install, fit, and seat properly.
Heli-Coil Insert 18MM X 13/16
The low reviews on this page come from not knowing how to insert the helicoil. The helicoil looks too big, but with a special tool, it is inserted into the cylinder with a bit of spring tension so that when you pull the tool out it is wedged in there.
Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per Vendor: 08-13859 is made of stainless steel. Brass cannot be used on Aircraft Engines as the temperature would melt the brass in an Aircraft Engine.
