B&C Model Sd-8 Alternator & Regulator

$770.00/Each
Quantity
Add to Wishlist
Part# 07-06770
MFR Model# SD-8 PMR1C-14

Overview

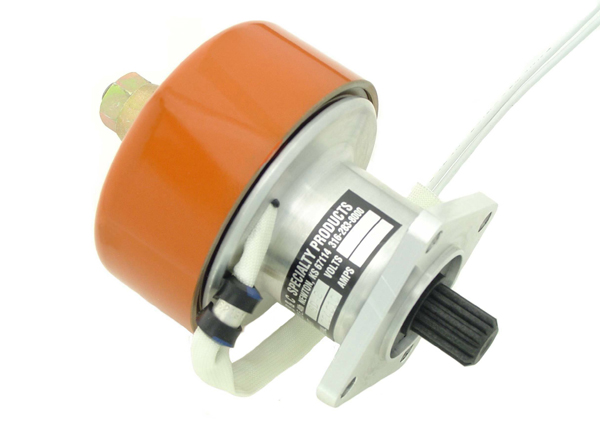

SD-8 Alternator

The spline-driven SD-8 alternator offers the benefits of an exceptionally lightweight alternator, and a design with proven durability in the rugged world of aerobatic aircraft. Weighing just 2.9 lbs., with a rated output of 8.4 amps @ 3500 alternator RPM, the SD-8 may be mounted on either the vacuum pump accessory pad, or on the hydraulic pump pad. It features a strong billet aluminum mounting flange, sealed ball-bearings, and a special "shear section" in the drive coupling. Shipped with a matching regulator.

For Experimental Aircraft ONLY

In The Box

  • Alternator
  • MS9134-01 Gasket
  • Regulator
  • Overvoltage Kit
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

The Photo shows the correct item, which is a B & C SD-8 Alternator. The description and the part sent is incorrect, BC462-H

(v) R Verified Purchase

B&C SD-8 ALTERNATOR WITH REGULATOR

February 18, 2022

Excellent

Eastcoast A Verified Purchase

B&C SD-8 ALTERNATOR WITH REGULATOR

August 26, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Re: Alternator PN 07-06770, do I need a regulator for it, or is the regulator built in? And, if I need an regulator, is it PN 08-00658?

Part number 07-06770 includes the regulator. It comes with an adjustable, solid state regulator.

Q: Amperage output @2500RPM

7amp in a 14v system.
