CLICK BOND FLOATING NUTPLATE KIT

$31.50/Piece
Quantity
Add to Wishlist
Part# 04-06005
MFR Model# KA4A1CB2009A3CR

Overview

Click Bond Fasteners mount to surfaces with adhesive. They are assembled in a disposable, self-fixturing device of plastic that aligns and holds the fastener in position and under controlled pressure while the bonding material cures. After the installation is completed, the holding fixture is removed and the conventional attachment is made to the fastener. Bonded fasteners eliminate welding or drilling surfaces and result in reinforced substrate strength, leakproof and corrosion resistant attachments. We offer Click Bond Fasteners in convenient, pre-packaged kits as shown.

The Click Bond adhesive bonded floating nutplate has a metal base and is installed using a disposable, elastomeric fixture that temporarily holds the nutplate in place and under pressure while the adhesive cures. The fixture prevents fouling of the clearance hole. No additional tools are needed for making the nutplate attachment. This fastener meets or exceeds the standards set by MIL-N-25027 for push-out, torque-out, and cycle life.

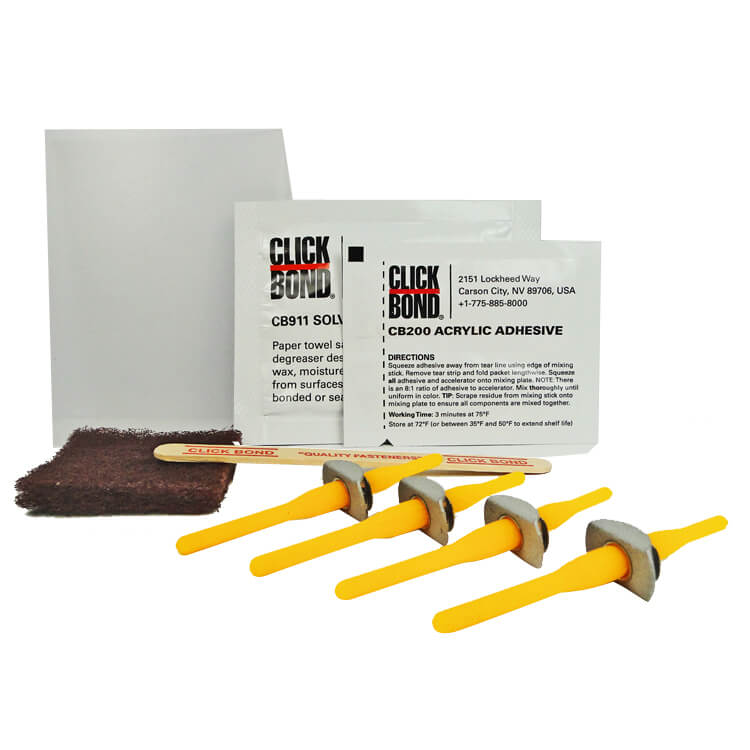

Bonded nutplates eliminate composite damaging rivets, reinforce the structure, and reduce installation time. The kit includes four CB2009A3S floating nutplates (10-32) with aluminum baseplate, one adhesive packet, surface preparation materials, & instructions.

Reviews

I have been using these nut plates extensively for many years. they are very good in situations where you would like to have a locking nut but dont want a nut on the back, however, they do wear out, and there is the issue of them occasionally popping off. I have done my own testing, and for goodness sakes if someone tells you they do not require any abrading on the back before being glued, challenge them. because the fact is they are over 36% stronger if you abrade the back with 40 grit sand paper and wipe with IPA prior to installation. I would also reccomend using CB394, not CB200 adhesive as it is far more resilient, however if you are using it on composites and you may need to remove them, use CB200 and then you can freeze it with freeze spray and knock them off with a chisel, while not damaging the composite (try it on something other than your airplane first!) overall a grea tproduct and leaves a nice clean look.

Bluto
January 29, 2017

Q&A

Q: What are the X and Y dimensions of the base plate (the part that is glued to the receiving surface)? Also can you get 8-32 screw size nutplates?

If X is referring to Length and Y is referring to width. This would be .796" L x .489" W. Yes, we can special order the 8-32 screw size nutplates for you. Please contact our sales department for current pricing and lead time.

Q: Hello, as FYI, I found specs for the CB2009 nutplate that specifies .190 - .250 diameter installation hole size for the CB2009A3S floating nutplates (10-32)

Ok, thank you for the information. We will post it for other customers to view.
