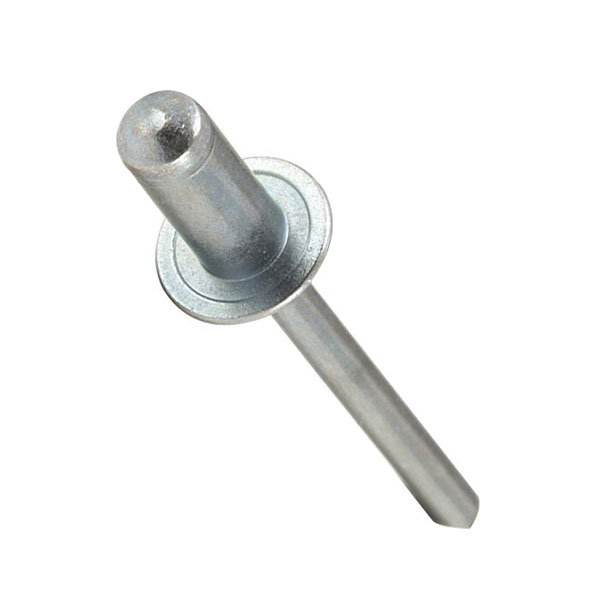

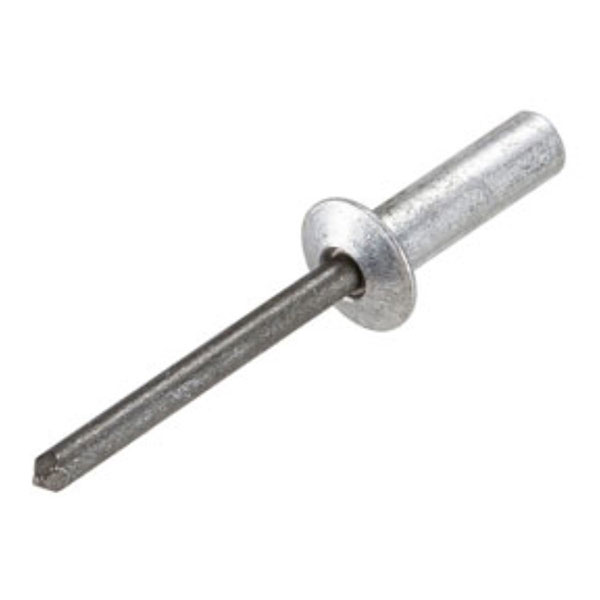

Ad42H Closed End Dome Head Rivet

$0.10/Piece
Quantity
Add to Wishlist
Part# 04-02334
MFR Model# AD42H

Overview

Closed End AD42H Blind Rivet; 1/8 Inch (0.125 Inch), (0.063 - 0.125 Inch Grip), Dome Head, Aluminum/Steel, Plain

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Features

  • Unit of Measure: Inch, 1/8 Inch Diameter, 0.125 Inch Decimal Equivalent, 0.063 Inch (1.60mm)
  • Minimum Grip, 0.125 Inch (3.18mm)
  • Maximum Grip, 0.063 - 0.125 Inch (1.60 - 3.17mm) Grip Range, Dome Head, Aluminum Body Material,

Specifications

  • Drill Size: #30
  • RoHS 3 Compliant: RoHS 3
  • OEM Unit Of Measure: Unified
  • Body Material: Aluminum
  • Style: Closed End
  • Manufacturer Part#: AD42H
  • RoHS Compliant: Yes
  • Body Finish: Plain
  • Material Detail: Aluminum 5056
  • Finish Detail: Plain
  • Fractional Diameter Size [Unified]: [1/8]
  • Head Height [Unified]: [.041]
  • Grip Range [Unified]: .063-.125
  • Head Height [Metric]: [1.04]
  • Tensile Strength Lbf. [kN.]: 385 [1.71]
  • Grip Range [Metric]: 1.60-1.60mm
  • Mandrel Finish: Coated
  • Head Type: Dome
  • Mandrel Material: Steel
  • Shear Strength Lbf. [kN.]: 305 [1.36]
  • Fastener Diameter (Nom) [Metric]: [3.17]
  • Mandrel Diameter (Nom) [Unified] mm: [0.064] 1.63mm
  • Minimum Grip [Unified] mm: [.063 ] 1.60mm
  • Maximum Hole Size [Unified] mm: [.133] 3.38mm
  • Maximum Grip [Unified] mm: [.125 ] 3.17mm
  • Minimum Hole Size [Unified] mm: [.129] 3.28mm
  • Head Diameter [Unified]: [.236]
  • Head Diameter [Metric]: [6.00]
  • Body Length (Nom) [Unified] mm: [.301]7.645mm
  • Fastener Diameter (Nom) [Unified]: [.125]
  • Type: Blind Rivets
