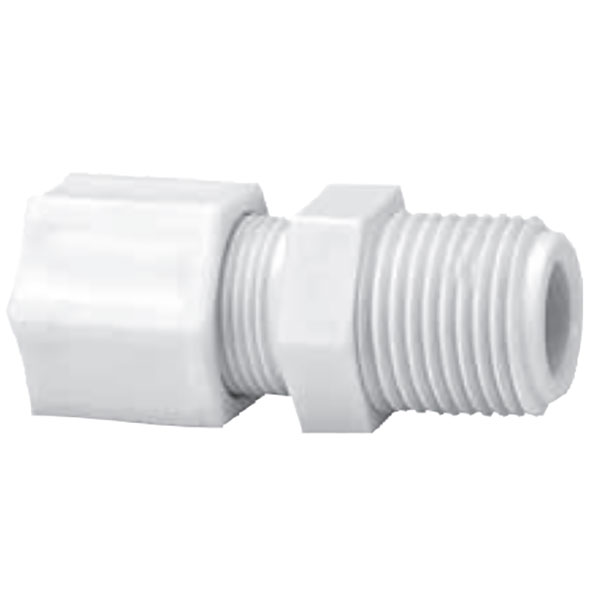

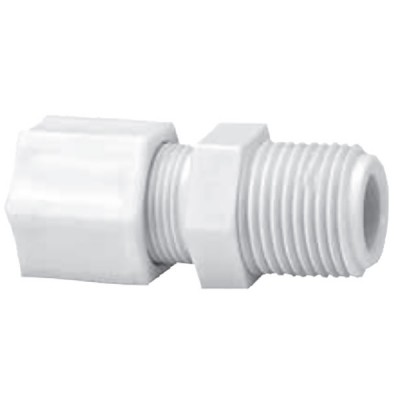

1568 SERIES MALE NPT NYLON COMPRESSION CONNECTOR

From $1.52 to $3.20
Tube O.D. Male
Pipe Thread

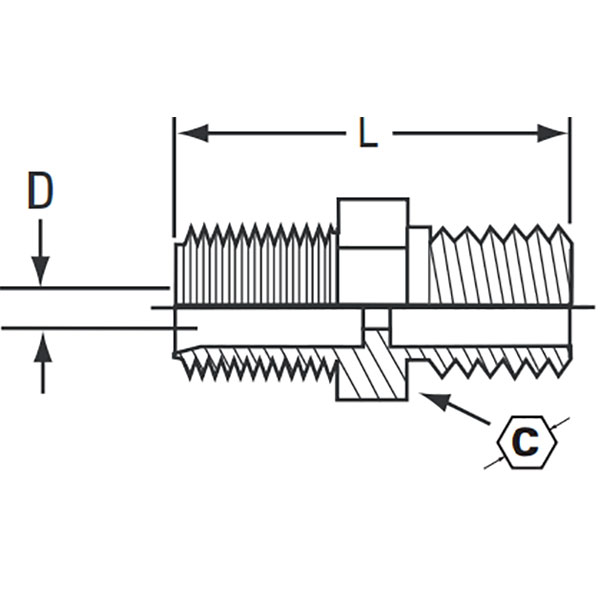

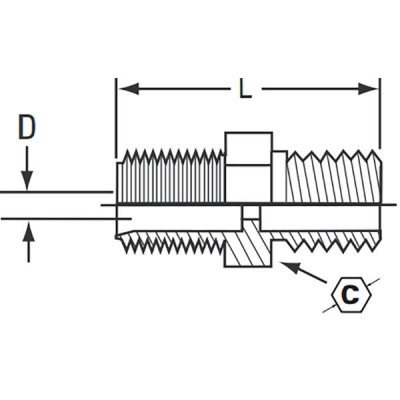

OEM P/N L D C P/N Price Buy
1/4 1/8 1568x4G 0.99 0.26 5/8 12-05471 $1.52
Quantity
1/4 1/4 1568x4x4G 1.17 0.28 5/8 12-05472 $1.75
Quantity
3/8 1/4 1568x6G 1.30 0.38 13/16 12-05473 $3.20
Quantity
3/8 3/8 1568x6x6G 1.34 0.38 13/16 12-05474 $2.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

1568 Series Male NPT Nylon Compression Connector.

Specifications

  • Connection Type A x B: Tube x Male NPT
  • Material: Nylon
  • Specifications: FDA, NSF
  • Type: Compression Connector
  • Working Pressure: 220 psi
