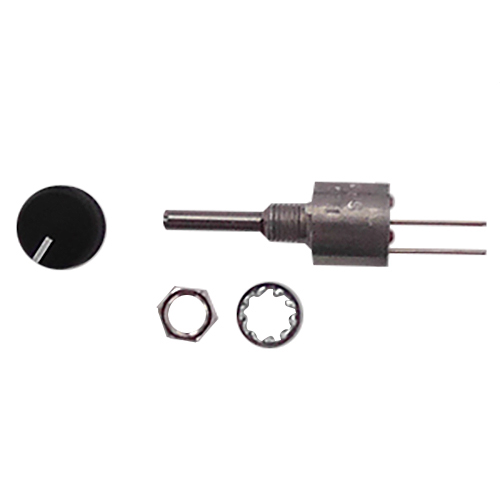

ASL Instrument Intensity Potentiometer & Knob

$76.75/Each
Quantity
Add to Wishlist
Part# 10-07354
MFR Model# A200-POT

Overview

This potentiometer will support up to ten instruments in a single installation. It provides infinitely variable, uniform intensity control for all instruments. These units are TSO qualified with all 200 Series instruments and is STC'd as a primary replacement instrument component under all flight conditions (day/night VFR and IFR). TSO (various per instrument) Canadian STC FAA STC Certified as primary replacement

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • DC Power Source
  • Input voltage 6 to 36 VDC
  • Power consumption 10mA (maximum brightness)
  • Load dump tolerance +60V
  • Direct spike tolerance +/- 60V
  • Cable spike tolerance > +/- 1KV
  • Operating Temperature
  • Constant operating -15ºC to +55ºC
  • Short term operating (1hr) -40ºC to +70ºC
  • Storage -55ºC to +85ºC
  • Dimensions
  • 0.5" diameter with 1/4" mounting hole
  • Weight (including knob)
  • 1.0 oz
