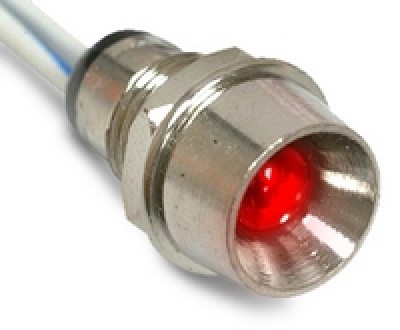

Electronics International Al-1 Red Chrome Annunciator Light

Add to Wishlist
Part# 10-04164
MFR Model# AL-1R


The AL-1 makes an excellent indicator light for displaying boost pump on, gear status, power on, flags, etc. Also, it can be used as a remote warning light for any E.I. instrument featuring an external warning line. The AL-1 is more attractive, operates on less power and is smaller than the old fashioned indicator lights.

The AL-1 has a service life of over 1000 times that of incandescent bulbs. Mounts in a 5/16" hole. Size: .4" diameter x 1" depth. Operates on a 12 or 24-volt system. Comes with 32" leads.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items


Great little light to hook to my UBG-16 to alert to a warning

Eastcoast S Verified Purchase


July 24, 2021

Bought three and hooked them up. Worked on the ground, then stayed on without a warning in flight

Marshall G
August 27, 2021


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the current draw of the EI AL-1 Red Chrome Annunciator Light?

Per the manufacturer: Less than 10 milliamps.

Q: Do these EI AL-1 LED lights have a built in resistor so they are ready to install in a system?

Yes, a resistor is built in.

Q: Can the EI AL-1 annunciator lights be dimmed?

We do not recommend installing this light on a dimmer.

Q: Are the AL-1 Annunciator lights push to test?

No, the AL-1 can only be tested when connected to an Electronics International gauge.

Q: Can this light be used for the 60 Amp plane power alternator warning light?

No, this light is designed to be used as an low amp light for an E.I. unit.

Q: Can this light be used as a warning light with the MGL instruments?

MGL units do not have a warning light option for their configuration.

Q: Does this annunciator light FAA approved?

Yes, these are FAA PMA approved.

Q: Can this light be used on a 28V power supply?

Yes, this light is functional in 12v-14v or 24v-28v systems.

Q: Can these lights be taken apart, sanded and painted? Chrome really wont work on my panel.

The manufacturer does not recommend disassembling the light as it will void the warranty.
