Dynon Module Mounting Tray for Sv-hdx800

$103.00/Each
Part# 10-07472
MFR Model# 104067-000

Overview

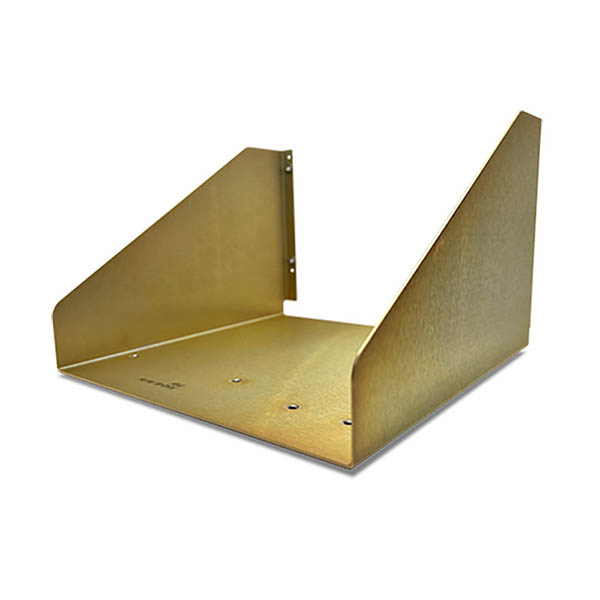

The Module Mounting Tray for SV-HDX800 simplifies both the new and retrofit installations by providing the means for mounting the HDX800 display and its backup battery. In addition, it provides mounts for either a SkyView COM transceiver, or a SkyView Transponder.

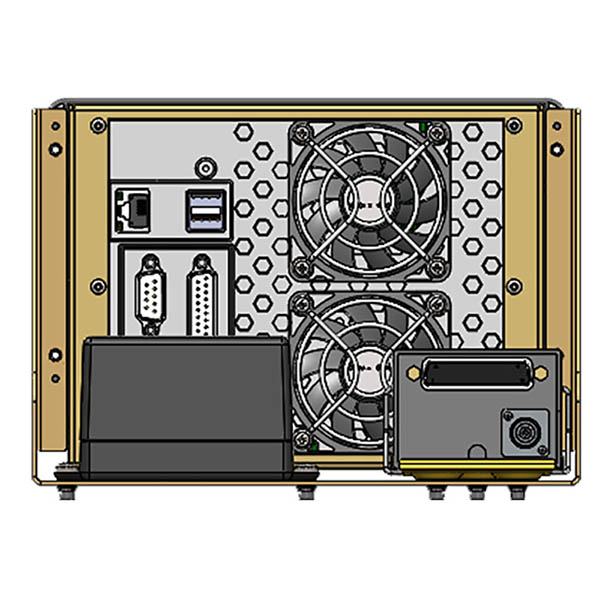

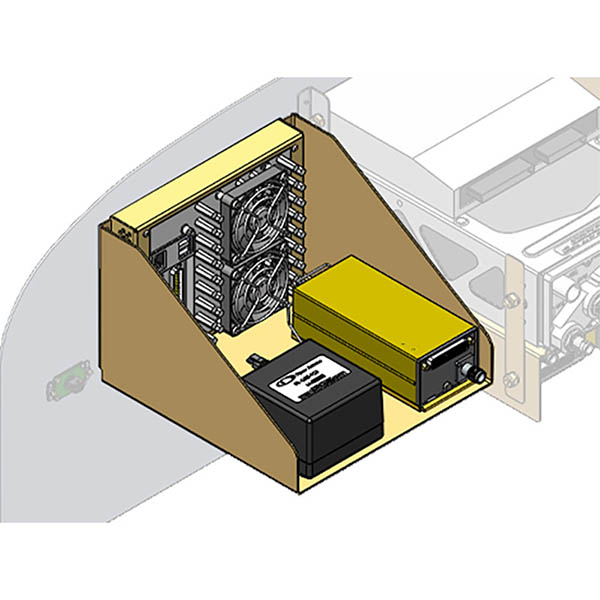

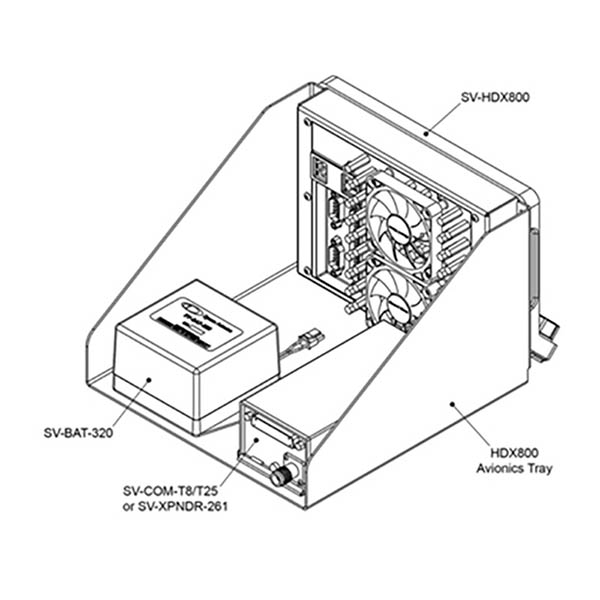

This gold alodined aluminum tray is mounted permanently to the forward side of the instrument panel, and provides nutplates for a quick and simple method for fastening the SV-HDX800 Display unit, the SV-BAT-320 Backup Battery, along with one of either the SV-COM-T8 COM Transceiver, or the SV-XPNDR-261 Transponder.

Maintenance access is also quick and easy, as these modules are easily accessible through the display unit’s instrument panel opening after the display is removed.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Compatible with SkyView HDX only. Not compatible with SkyView Classic, Touch, or SE.
