AVIASPORT ROTAX 914 EGT GAUGE CELSIUS - 2 1/4 INCH

$119.75/Each
Quantity
Add to Wishlist
Part# 15-08551
MFR Model# IM-775

Overview

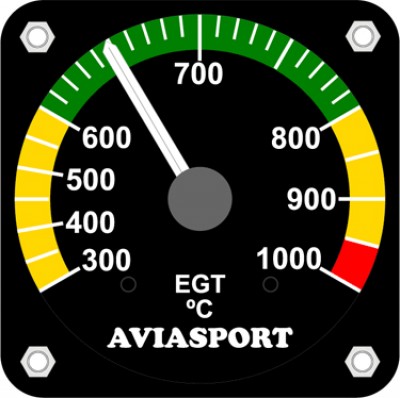

The IM-775 instruments have been designed especially to measure the EGT in Rotax« engines 914. The IM-775 is available in 2 1/4" (57mm) diameter. With a optional switch, you can measure the Temperature of two EGT. The instruments use a pointer thats turns 240║, witch gives them great resolution. Their display areas are divided into red, green and yellow zones in line with the ROTAX limits.

Thanks to embedded operational amplifiers, this instrument has a high accuracy, but needs a power supply of 12V or 24V.

Specifications

  • Case: Plastic
  • Weight: 200g
  • Suitable for: Rotax 914 With Type "K" sender
  • Power Supply: 10-30VDC
  • Power Current: 0.1 Amp. Max.
  • Scale : 300-1000 ║C
  • Subdivision scale: 10║C
  • Max. Deviation: 1%
  • Dimensions: 2 1/4" (57mm) Diameter
  • Calibration: Calibrated by the manufacturer prior to shipment.
