AvIasport Rotax 914 Dual EGT Gauge Celsius - 2 Inch

$118.75/Each
Quantity
Add to Wishlist
Part# 15-08554
MFR Model# IM-778

Overview

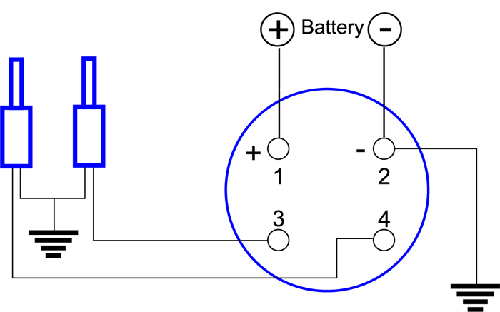

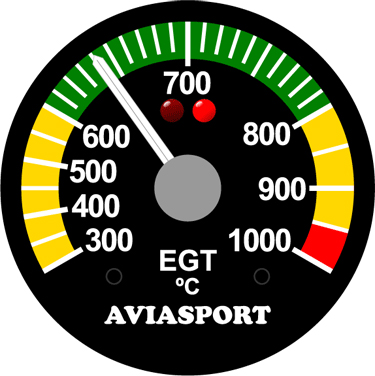

The IM-778 instruments have been designed especially to measure the EGT in Rotax« engines 503. The IM-778 is available in 2" (52 mm) diameter. Can be connected two probes. First shows the temperature of one. After of 3 seconds automatically show the other probe temperature, The two LEDs are used to show that probe is reading. The instruments use a pointer thats turns 240║, witch gives them great resolution. Their display areas are divided into red, green and yellow zones in line with the ROTAX limits.

Thanks to embedded operational amplifiers, this instrument has a high accuracy, but needs a power supply of 12V or 24V.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

  • Case: Plastic
  • Weight: 200g
  • Suitable for: Rotax 914 With Type "K" sender
  • Power Supply: 10-30VDC
  • Power Current: 0.1 Amp. Max.
  • Scale: 300-1000 ║C
  • Subdivision scale: 10║C
  • Max. Deviation: 1%

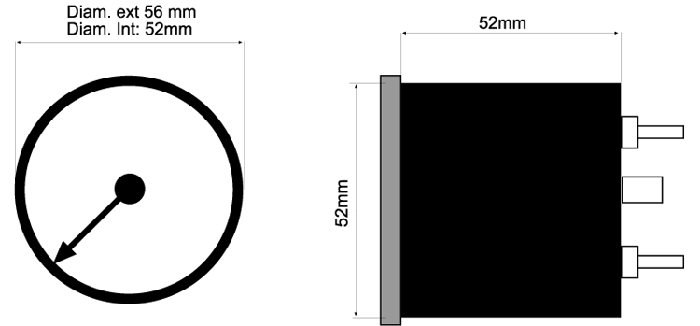

  • Dimensions: See sketch
  • Calibration: Calibrated by the manufacturer prior to shipment.
