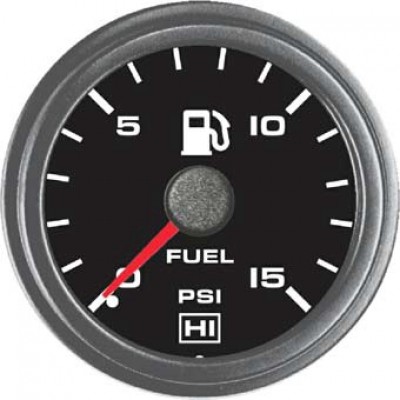

Fuel Pressure Gauge 0-15 Psi Lighted - 2 Inch

$98.75/Each
Quantity
Add to Wishlist
Part# 10-05478
MFR Model# 100-100-1R-1

Overview

Fuel Pressure Gauge, Single
2" diameter
Pressure range: 0 - 15 psi
250° arc pointer sweep.
Pointer and Dial L.E.D. Illuminated
Internal 12 VDC

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Specifications Chart
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Ordered these together and could not make them work. Came with no instructions. Returned the items .

Peter S Verified Purchase

2 Fuel Pressure Gauge 0 To 15 PSI Lighted

October 6, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the Fuel Pressure Gauge a mechanical pressure gauge?

Per the specifications chart, The Fuel Pressure Gauge 0-15 Psi Lighted - 2 inch is a mechanical pressure gauge.

Q: What sender needs to be used with this gauge?

The sender for this gauge is part number 10-01083.

Q: If this is a mechanical gauge why do you say it needs a sender? Is the gauge wet. eg fuel supplied to the gauge? Thanks

All fuel gauges require a sender that is placed in the tank. This is done so that you do not have to run fuel through your cabin and to the gauge. It is safer to use a sender.

Q: If this is a fuel pressure gauge, the sender would not be in the tank. Does this fuel pressure gauge need a fuel hose ran to it, or does it use wiring from a sender? Are there any pictures of the back of the unit?

You can review what the back of the unit looks like on the specifications sheet found in the document section.
