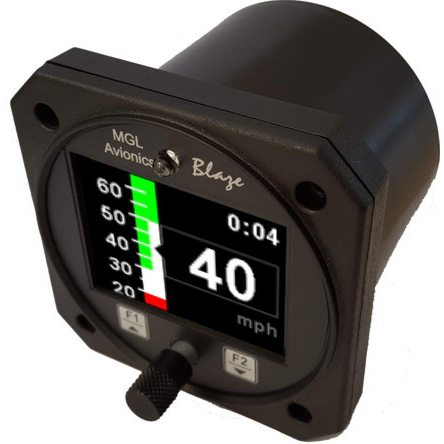

MGL Color Airspeed Indicator - Blaze Series

$429.00/Each
Quantity
Add to Wishlist
Part# 11-16584
MFR Model# ASI-5

Overview

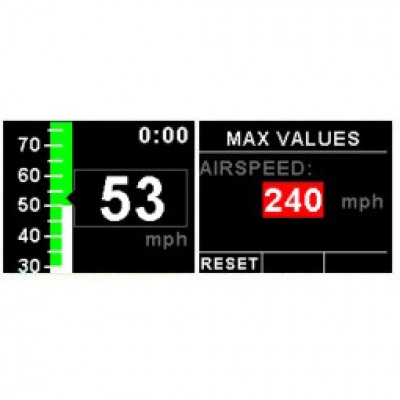

The ASI-5 is a 3 1/8” sunlight readable instrument that provides a wide range airspeed indication in both digital and analog tape formats. Airspeed is based on the pressure generated by a pitot tube system and a static port is provided as well for use in high speed aircraft. In addition, the ASI-5 provides a flight timer since takeoff and records the maximum airspeed reached.

Airspeed can be indicated in statute miles per hour (mph), kilometers per hour (km/h) or knots (kts). The analog airspeed tape can be scaled according to the aircraft’s flying speed range and ranges for Vs0, Vs1, Vfe, Vno and Vne can be set. The ASI-4 also provides a programmable Vs and Vne airspeed alarm output. ASI sensitivity can be calibrated by the user to cater for errors caused by pitot tube placement.

The ASI-5 instrument measures airspeed from 16mph to 250mph and is well suited to slower aircraft due to very good sensitivity and linearity at low air speeds.

Features

  • Measures airspeed from 16mph to 250mph and is well suited to slow aircraft due to very good sensitivity and linearity at low air speeds
  • Includes a flight timer since takeoff
  • Airspeed units can be set to miles per hour (mph), kilometer per hour (km/h) or knots (kts)
  • Analog tape with programmable ranges for Vs0, Vs1, Vfe, Vno and Vne
  • Contains a programmable Vs and Vne airspeed alarm output
  • Records maximum airspeed reached in permanent memory
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Arrived quickly. Still havent fitted it yet.

John
December 4, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you get this MGL Blaze airspeed indicator with an stc for your plane?

The MGL Blaze series is not FAA Approved and is intended for installation on experimental aircraft only.
