Model: AP-Q12B3-D120-5V / AP-Q24B3-D120-5V

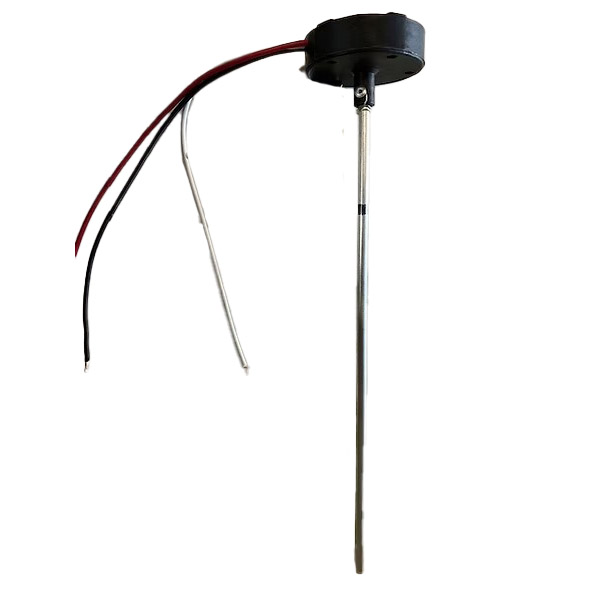

Capacitance fuel level sender 12 or 24" long, 3" bendable section, 1/4" OD, 12 or 24 VDC (28V MAX) input, 0-5 VDC output, 4 wire.
Made in USA
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, a mounting kit is not included.
The minimum the probe can be cut back is 50% of the original length of the probe. For a 4" deep tank, you will need to order part # 10-04344 and cut to desired length using tube cutters.
No, all Westach equipment is intended for use in experimental aircraft only.
Diameter is 2.65 and the holes are 2.21 across.
Per the Manufacturer at Westach P/N 10-00798 can be used for 12 or 24v.
18-20 gauge is recommended by the manufacturer.
