Matco Axle A4

From $71.75 to $75.75
Description Part Number Price Buy
MATCO AXLE .625 DIA WHLA4
06-16830
$71.75
Quantity
MATCO AXLE ASSY WHLAXLE4
06-00523
$75.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

A4

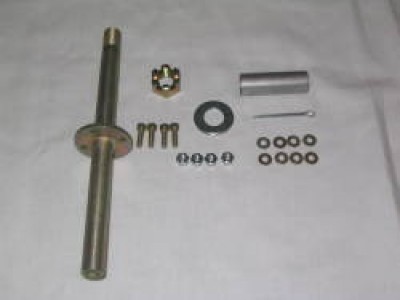

The WHLAXLE4 axle is a TUBULAR style axle made of 4140 HT STEEL alloy. This axle has a 0.625 inch diameter bearing surface. The axle has 0.898 inch four bolt hole pattern on a 1.27 reference circle. This axle assembly comes with the AN4 axle nut

MATCO mfg axles that are aluminum are black anodized and steel axles are yellow zinc.

Product Comparison Table
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Drop in replacement on my Titan 2 S.

Paul
May 25, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is overall length of axle and length from thread end to ring with four holes?

9.050 inch over all and 4.67 inches from ring to end of thread.
