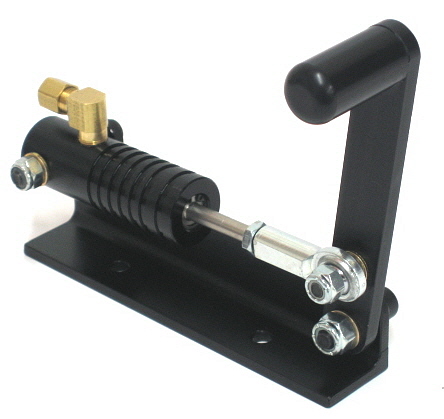

Hegar Master Cylinder 5 Inch Complete - Single Lever

Select Bore Size:
1/2 Inch5/8 Inch
Add to Wishlist


5" single lever, foot operated. Designed for single braking.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Part # 06-01277: What are the full dimensions of this unit, including the length of the pedal lever? Does it have an integral reservoir or is there a 2nd line fitting that's not visible in the image? Is it intended for horizontal (heel) or vertical (toe) operation or can it be used in either orientation?

This is 6"L x 1-1/2"W x 5"H the T at the top of the handle is 3" wide. This has an internal reservoir. This is intended for toe operated brake.
