MATCO CENTRIFUGALLY CAST WHEELS INTERNAL CALIPER W50L.75

$629.00/Pair
Part# 06-00833
MFR Model# WHLW50L.75

Overview

W50L.75

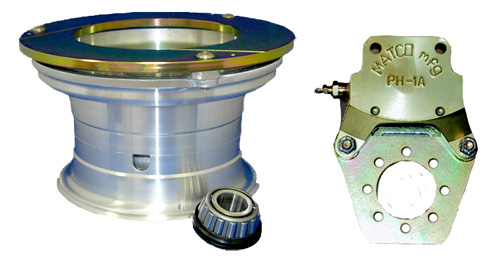

MATCO mfg produces a superior 5 inch wheel and brake assembly for use with aircraft requiring less than 660 lbs per wheel. This model uses 0.75 inch BALL bearings. (Check the product comparison table for other bearing and caliper configurations).

Dimensions

The W50L.75 is a 5 inch wheel with 4.6 inch width with an additional 1.23 inch caliper spacing. Bearing spacing is 3.084 inches and axle spacing is 1 inches. The total weight of this wheel and brake assembly is 6.6 pounds. The bearing axle diameter is 0.75 inches.


Performance
The W50L.75 is designed for the following standards:
Static Capacity: 660 LBS
Load Limit: 2000 LBS
Maximum Accelerate/Stop Kinetic Energy: 189604 ft-lb
Torque Rating (@450 PSI): 1988 in-lb

Product Comparison Table
