Scott Type Rudder Arm

Add to Wishlist
Part# 1140
MFR Model# U1140A-000

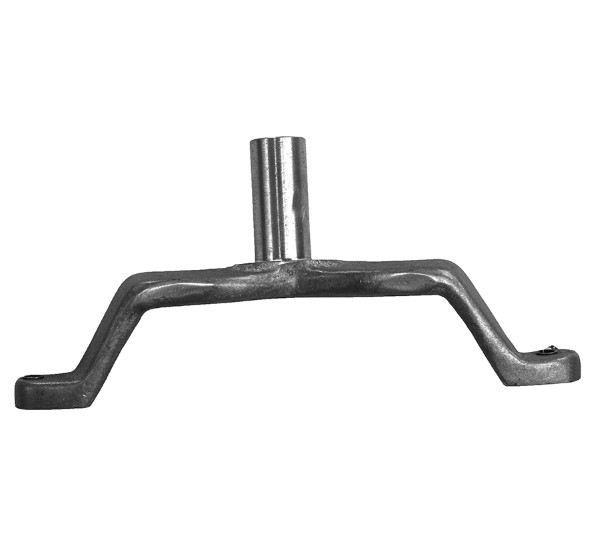

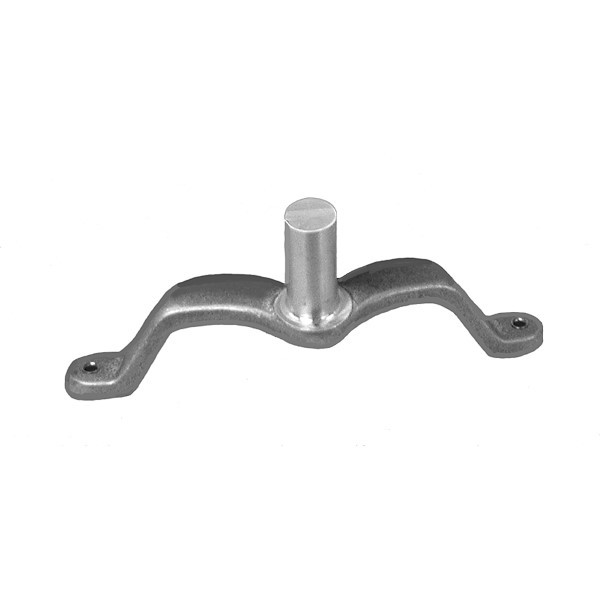

FAA/PMA Approved Scott Type Rudder Arm. Cast aluminum brackets with reinforced chain mounting holes. 3/4" diameter post between mounting holes.

Applicability: Piper J-3, L-4, NE-1, NE-2, J-4, L-4E, L-4F, PA-11, AE-1, HE-1, PA-12, PA-14, PA-15, PA-16, PA-17, PA-18, L-18C, L-21A, L-21B, PA-19, PA-25

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


Great part! Just know that this a Univar copy of the Scott version and it is well built. The bushing sit up a little higher than the surface of the metal making eyebolts a bit of a hassle to space correctly but they are steel bushing and should last a long time. Do know that you will need to match drill for your specific rudder bolts. I guess I should of know that and just made it a hassle to have to drill the component. That said, its as solid as it could be in the rudder. This actually made the steering a bit tighter. My last one must of been off a salvage plane and didnt fit great.

Craig B Verified Purchase


October 3, 2022


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the hole spacing on this rudder arm?

7" from hole center to hole center.
