ULTIMATE PROPELLER WRENCH 5/8"

$76.75/Each
Part# 05-12481

Overview

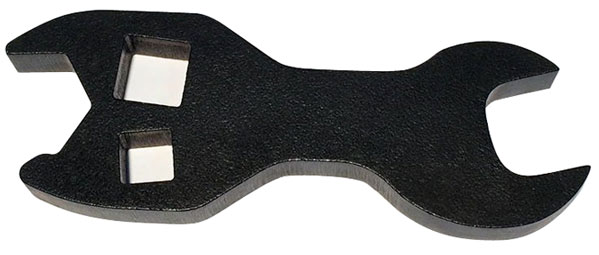

This custom built Anti-Splat-Aero constant speed propeller wrench was created especially for you and your airplane. This tool is available in 3/4" and 5/8" sizes, its small, lightweight and easy to use making your propeller servicing and installations fast and easy. With just a few flicks of your wrist, the bolts are started and easily run in and torqued. The one end ratchets without removal from the bolts, and the other end is an extremely strong fully reversible Crows Foot for torquing the propeller.

This super wrench is constructed with materials that are very strong, (4130 heat treated steel) then electroplated to meet high standards and will provide you with years of service. Utilizes both 1/2” & 3/8” ratchets, torque wrenches, and extension tools. Crows foot end is offset 15° for double the versatility for difficult bolts behind prop blades. Black oxide plated for years of service and corrosion protection.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Utilizes both 1/2” & 3/8” ratchets
  • Torque wrenches and extension tools
  • Crows foot end is offset 15° for double the versatility for difficult bolts behind prop blades.
  • Black oxide plated for years of service and corrosion protection.

Reviews

OUSTANDING! I highly recommend this wrench to anyone who needs to remove or install a Hartzell constant speed prop. I struggled with standard wrenches and crow foot wrenches only to have them flex and slip off of the lug nut. I tried using the Hartzell wrench and it didnt perform nearly as well as this wrench. I bought this tool with high hopes. It did not disappoint me. It makes removing and tourqing prop bolts very easy. I was absolutely amazed at how easy it is to use. The material is super hard very strong steel. It does not flex at all. I would not want to change out a Hartzell prop without it.

Bill P
August 26, 2022

No Problems

Mervyn R
May 17, 2021

When I pulled this wrench out of the box I thought, hmm, a bit pricey for what it is. But, wow, after using it I highly recommend it!!! This tool is high quality and very nicely machined. It made installation of my Hartzell constant speed propeller an absolute breeze. I wont be loaning this tool out to friends without a deposit.

Joe B
February 4, 2019

If you are thinking about removing or installing a Hartzell CS prop, this is the tool. It allows adequate offset for a torque wrench, and a partially open end for iterating quickly as you install or remove the bolts. It is of obvious quality and quite robust.

Rick D
June 22, 2018

This is a well made product and is great for removal and installation of my McCauley propeller. I wish the price was a little more reasonable. That is the only reason for 4 instead of 5 stars.

Joe
March 25, 2019

Have not used yet but is a quality piece. After use may be a 5 star

Steve C
February 10, 2018

This wrench will allow you to install and properly torque the propeller bolts (in my case stud with a bolt and roll pin) on many McCauley installations, but it leaves much to be desired in the removal of the same nut. One side of the portion that grabs the nut is shorter and the wrench tends to slip off regardless of which way the wrench is used. I think this needs a little more engineering.

Sam L
April 13, 2021

Tried to use on a Maule M6 and Comanche 250, wrench didn’t fit either aircraft under the spinner back plate. Almost an awesome tool.

Vulcan A
April 25, 2020

I want to be fair in this review, yet the wrench is not perfect. My review will only address its use in removing/installing the prop on a Mooney 201 w/ the stock 2-blade McCauley. For the nuts not crowded by the prop blades the wrench worked okay for breaking them loose. But on the others the tight spinner-hub required the wrench to be placed on the nut at a significant angle such that it wouldnt engage the nut fully. On one particular nut the wrench slipped off under pressure and gouged its inner surface where the wrench grips the nut. I was surprised that the steel (wrench) was as soft as it was. Once that occurred it was no use trying to break that nut free. Instead I got out my old trusty long-pattern 3/4 combination wrench which easily loosened the nut, even at an angle. I should have just used the combination wrench to break all the nuts free to save wear on the prop-wrench. The pseudo-ratcheting end of the prop-wrench was somewhat functional and does make loosening and tightening the nuts/studs easier and thats likely its most useful feature. Like another reviewer, for my application the wrench’s overall length is too long. The wrench contacts the spinner hub such that it remains at an angle and can’t fully engage some of the nuts. Due to this angled nut engagement there was simply no way to get a ratchet extension into place without using a universal-joint. This would be a perfect tool if it were about ¾” shorter in length. It would be even better if it were 2 separate wrenches (¾” shorter) with one being the pseudo-ratchet and the other a simple open-end with the square ratchet holes. If I did this often I’d buy two wrenches and cut the opposing ends off each one to create such a “set”.

Cnoe
March 2, 2020

Great idea and excellent quality but it simply doesnt do the job in the tight confines of a 3 blade Hartzell Top Prop. Just had to go back to the way and tools Ive used for last 40 years. The inclusion of the Flank Drive feature that Snap On has marketed is however an excellent idea. An extra 1 or so and a bit thinner might help it clear mounting flange and allow clearance for a 1/2 drive.

Richard D
March 31, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How long is this? I see a review has an issue w length

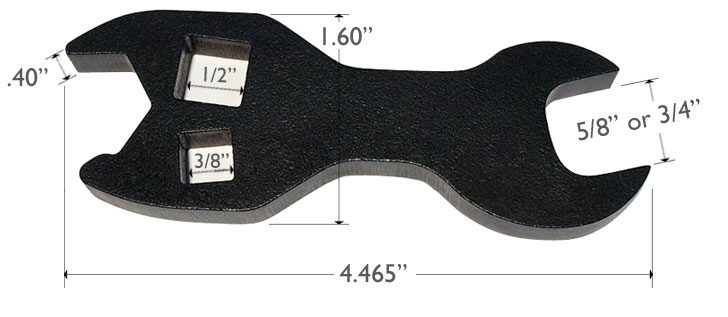

Approx 4.5 inches in length.
