|Description||ID||PN||Dash No.||Price / Ft||Length||Quantity|
|Ducting Vena HT||5||05-29920||-20||$18.85|| |

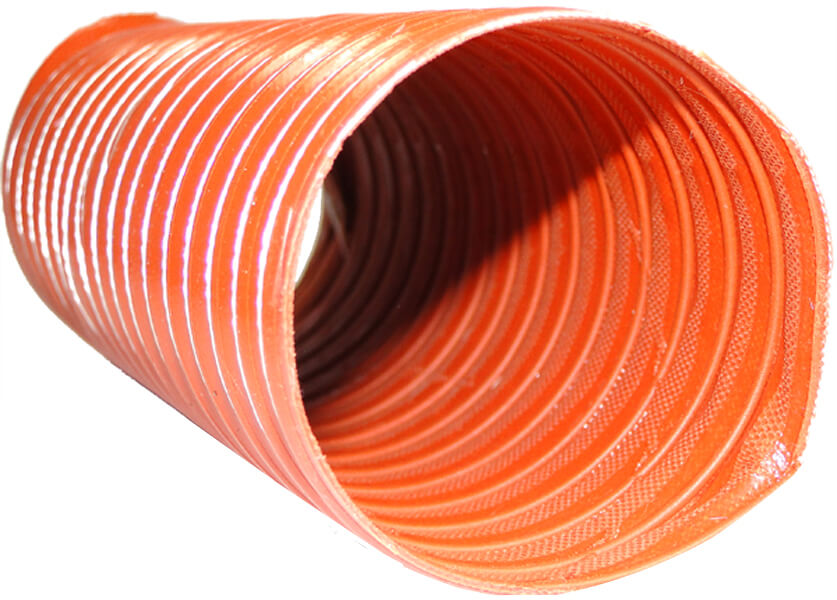

Sold by the foot.The flexible hose Vena® HT has excellent flexibility and excellent aging resistance.
These kind of flexible hoses are specially recommended in gas conductions at high temperatures, engine exhaust fume extraction from a point immediately close to the ejection area, electronic units cooling and welding gas aspiration.
This product is manufactured with one fiber glass reinforcement with high temperature resistance silicone rubber. The inner part is coated with visible steel wire.
Operational temperature range from -55ºC (-67ºF) to +260ºC (+500ºF). It may reach up to 300ºC (+572ºF) during short periods of time.
Stock diameter listed in ordering grid. Diameters not listed are available as a special order in full lengths only. Full factory lengths are up to 13 ft. Varies by warehouse. For lengths over 13 ft, contact sales to confirm availability.
Quick service and excellent product.
SCAT Tubing - As always, ACS delivers promptly to my doorstep!
What on earth is there to review? It is a two foot length of tubing shipped as I ordered it.
It work perfectly
It works well for the diesel heater on my boat.
using it for an exhaust extension for my generator and it seems to work great. Well see how long it lasts...
I give this product five stars for form fit and function. The coiled wire that gives the tube its structure is embedded in the wall of the material, not just free-floating in the ID of the tube. Great product so far.
got it the next day, thanks.
I have not installed the ducting as yet. The ducting looks like a perfect replacement for the worn original.
Excellent fit good service
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this is priced and sold by the foot, so quantity 4 would order 4 feet.
Correct, that part number has a 2 inch internal diameter.
It is a 20 year shelf life for both Scat and Sceet.
3" plus twice the wall thickness 0.098, around 3.20"
We get them in 13 foot lengths but we sell it per foot. It is cut to desired lengths. Inner wire can be trimmed for final installation, if required.
The OD is just over 1-1/2, the wall is thin. We recommend a QS200-20 clamp.
SCAT - SCAT type ducting has the same type construction as CAT except with red silicone rubber impregnation. For use in conducting extremely cold or hot air with temperatures from -65Â° to over 550Â°F. Not recommended for negative pressure applications.
SCEET - SCEET type ducting has two plies of silicone rubber-impregnated fiberglass, similar to SCAT except wire between plies. Ideal for use in conducting extremely cold or hot air at temperatures from -80Â° to over 550Â°F, and for conveying fumes. Not recommended for handling liquids or highly abrasive materials, or for negative pressure applications.
No, we do not offer the ducting pre-crushed. When we ship it is round.
You would remove the clear plastic, it is on there for shipping.
13 foot is full length.
