|Description||ID||Part No.||Dash No.||Price / Ft||Length||Buy|
|Ducting Vena HTD||3-3/4||05-30615||-15||$22.50|| |
Sold by the foot.

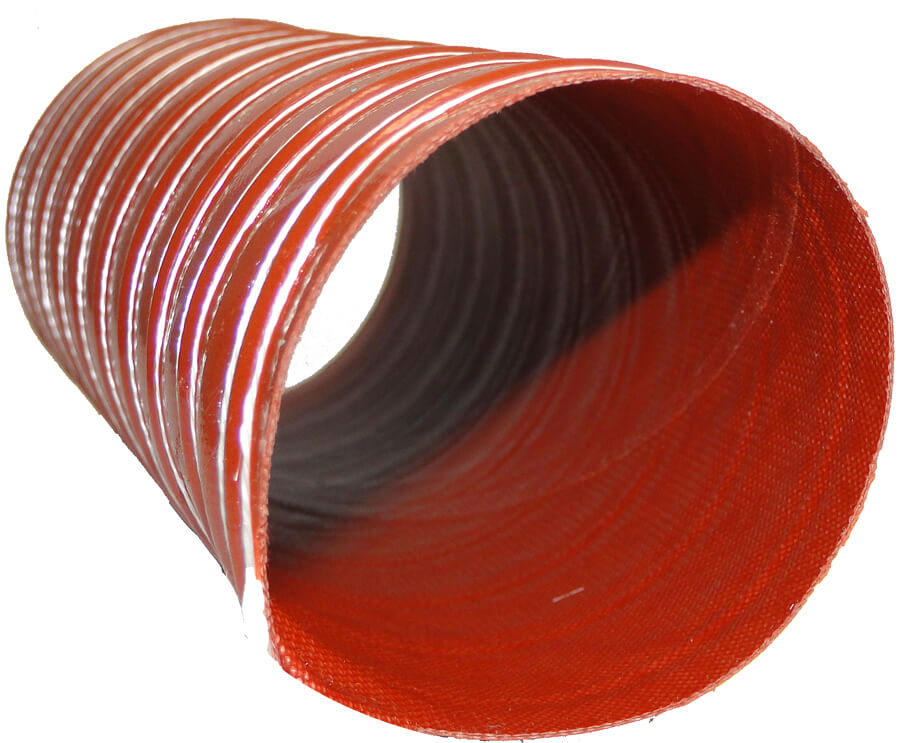

Flexible hose made of two layers of fiber glass and silicone coated with a non-visible steel wire inside the hose wall.
Recommended in gas conductions at high temperatures, engine exhaust fume extraction from a point immediately close to the ejection area and as protection of electric cables passing through extremely hot areas.
This product is manufactured with two fiber glass reinforcements with high temperature resistance silicone rubber. There is an inner steel wire inside the hose wall.
Operational temperature range from -55ºC (-67ºF) to +260ºC (+500ºF). It may reach up to 300ºC (+572ºF) during short periods of time.
Stock diameter listed in ordering grid. Diameters not listed are available as a special order in full lengths only. Full factory lengths are up to 13 ft. Varies by warehouse. For lengths over 13 ft, contact sales to confirm availability.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Purchased this for my Porsche 911build to be used as heater hose from heat exchangers. Received quickly and product is high quality. Would recommend
Claudia Rodriguez was very professional in helping with the reorder of the first hose, which had oil inside and had stains on the outside. I have not received the reorder yet. Thanks Claudia for the help!
I love how the inner diameter is less than the outer diameter to keep the air on the inside! Great duct for all your ducting needs.
Product arrived within a few days. I have no complaints.
Great Air duct, Price is comparable to other sources. No problems.
Excellent quality, double sided thickness. Much better than the old stuff.
Excellent quality, better than the one I had.
Fit perfectly. Good quality.
Exceeded my expectations. Much better than SCAT and well worth the added expense
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The weight of this ducting is approximately 0.33 lbs / ft.
The material does not come with material analysis certification. You can request this information at the time of order. We receive this material with a certificate of conformance, the material analysis will need to be requested from the manufacturer, and they may charge for this accordingly.
The technical data sheet does not list the OD of this material, but it is approx. 1-1/8".
This is measuring 3.077.
