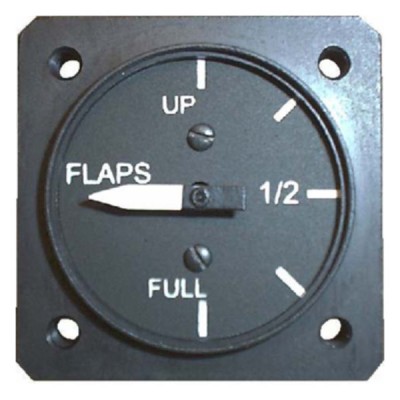

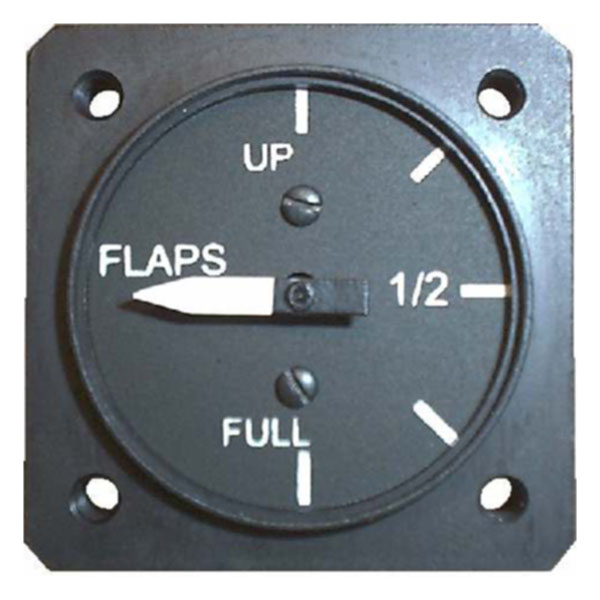

UMA 1-1/4 Flap Position Indicator 0-40

$233.95/Each
Part# 10-00054
MFR Model# N0911000401000

Overview

Monitor engine's vitals with a full line of space saving 1-1/4" instruments with 240º analog sweep.The Instruments allow you the opportunity to utilize panel space without comprom- ising readability. You no longer do you have to decipher cluster gauges or push buttons for readings or try to concentrate on flashing numbers. These premiere UMA instrument are electronic & can be powered from 14 or 28 V. Signals are acquired from remote mounted sensors, processed and displayed on analog dials with easy to read markings. Each gauge uses rugged aircore meter movement for vibration resistance and repeatability. Each gauge can be placed in a 1-1/4" dia.hole and mounted behind the panel with (4) 6-32 screws. They can be cluster mounted as close as 1-1/2" centers. UMA Technical Support: 800-842-5578. Mount individually or as a cluster. Note: Order senders separately.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Streamline
  • Stackable
  • Easy To Read
  • Rugged Design
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: is the UMA 1-1/4 Engine Flap Indicator Gauge TSO/PMA'd?

The UMA 1-1/4 Engine Flap Indicator gauge is not a TSO'd/PMA'd product.

Q: Are the UMA Flap/Trim/Rudder Position Indicators FAA/PMA?

Per UMA, the UMA Flap/Trim/Rudder Position Indicators are not FAA Certified or PMA'd.

Q: I need to order the transmitter and harness for the UMA 2-1/4" FLAP INDICATOR 0-40. What is the part number?

This is PN:AN5785 (1H1).

Q: Based on a previous question you answered on Flap Indicator certification. Are you saying the FAA doesnt require the Flap Indicator to be TSOd. Its a Non TSOd item? Just trying to find out. Dont want to purchase something that requires TSO, but not have it.

The previous question is stating that this item is not FAA TSO approved.
