The probe is constructed of concentric tubing (a small tube inside a larger tube). The tubes, which are separated by small insulators to keep the tubes from touching, acts as a capacitor that has one value in air (empty tank) and changes in value as the fuel level rises inside the probe. The amplifier converts these values to a signal suitable to drive a standard meter or other display device. Can be manually calibrated. See Documents tab.
12 or 24 inches with 3 inch bend
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

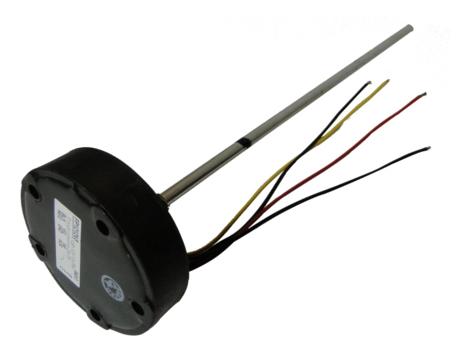

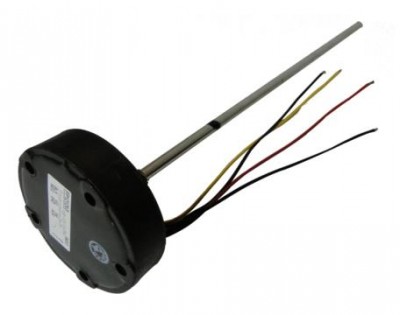

FUEL PROBE 12V 24IN 3BND 0-5V
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes this has the 5 hole pattern. We suggest having the product in front of you before making any changes or modifications.
Per the datasheet, the outer tube is simply a ground for the inner tube that does the sensing.
