Part# 10-04499

DescriptionPart No.

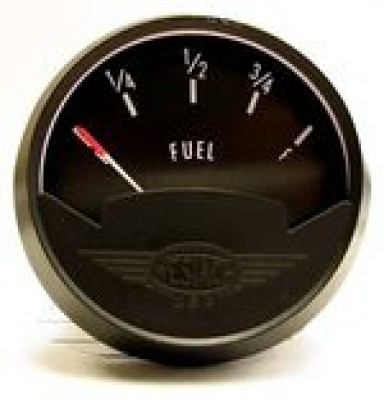

Fuel System 2" Round 12" with 5" Bendable Probe10-04499

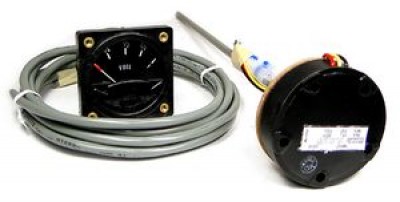

The Skysports fuel monitoring system is a capacitance system which has no float and no moving parts except the needle on the gauge. Used in hundreds of various ultralight, homebuilt, and military aircraft, these fuel systems have been very popular due to their accuracy and durability. The Skysports fuel probe electronically measures the level of fuel in the tank, and sends the signal through the wire harness to the gauge. Available for single or dual tank use and for 12 or 24 volt operation. The system includes the gauge, probe, 8 ft. wire harness, mounting hardware, & instructions.

The SkySports 240-33ohm fuel systems are no longer available. They have been replaced with a new 0-5V system. These new systems, (listed below) can be used on both 12 or 24 volt aircraft. The older 240-33ohm gauge and probes are not interchangeable with the new 0-5V gauge or probes. However the installation of the systems are the same.

Note:The Skysports 240-33ohm older style probes are only available as special order upon request.

Made in USA
California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.


I want to install the capacitive fuel system but on the meter I got 2 connection and on the diagram they illustrate 3 connections confusion

Serge B
November 27, 2013


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the straight 12 inch capacitance probe be cut to suite a 9 inch tank depth?

Yes, you can cut this probe to the desired length.

Q: Is the gauge lighted in these kits?

No, these gauges are not lighted.

Q: Any FAA Approval in view for replacing the system that we have on all cessna and pipers with this one?

No, these systems are intended for experimental aircraft installation only. No FAA Approval.

Q: Which Westach gauge is used with sky sports sending unit PN - FP1212W (CGF-12A-12V-WESTACH) (side wires 5H) three wire sending unit.

PART # 10-04119 can be used.
